Blister & Secondary Packaging

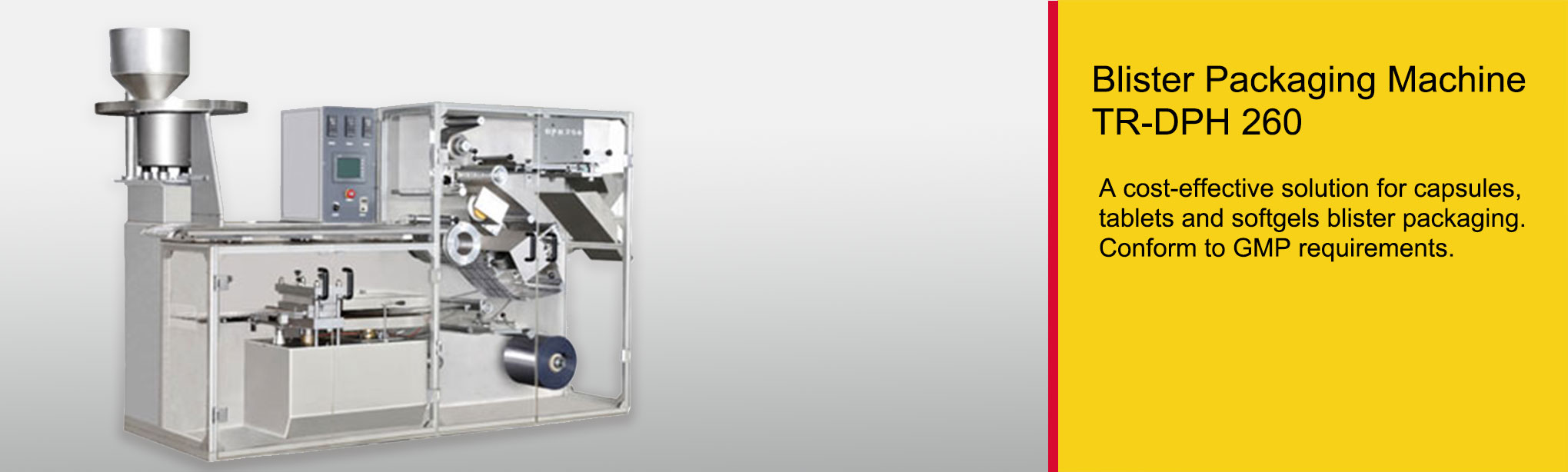

TR-DPH 260 Blister Packing Machine

Blister Packing Machine cost-effective

1, The main parts of our blister packing machine are made from premium stainless steel and alu-alloy material, which are machined by advanced high precision CNC tooling machineries.
2, The maximum diameter of the reel can be 600 mm, which guarantee 180 muinutes uninterrupted production. The funciton of waste material trimming cutting is available.
3, Equipped with integrated forming material splicer and automatic format positioning system to achieve straight-forward format changeovers.
4, The fast lock method enables replacement of lidding material easily within 15 seconds.
5, Material drag system adopts a precise servo motor. It is stable, accurate in running. The blister length can be easily setted.
6, Sealing cylinder is placed inside of the machine’s body to improve the machine's structure.
7, Meet the GMP requirements.

Blister Packaging Machine

Model	TR-DPH 260
Max. Speed:	Alu/Alu 40 punches/min; Alu/PVC 70 punches/min
Max. Output:	280 blisters/min. (Alu/PVC Blister size 57-80mm)
Max. Forming Area:	245x152 mm
Max. Forming Depth:	12 mm
Material:	Max. Width 260 mm
Machine Power:	9.6 kW
Machine Dimenssion:	4 Stations: 2400x740x1,700 mm 5 Stations: 4450x740x1,700 mm
Machine Weight:	4 stations: 1,800 kg; 5 stations: 1,950 kg

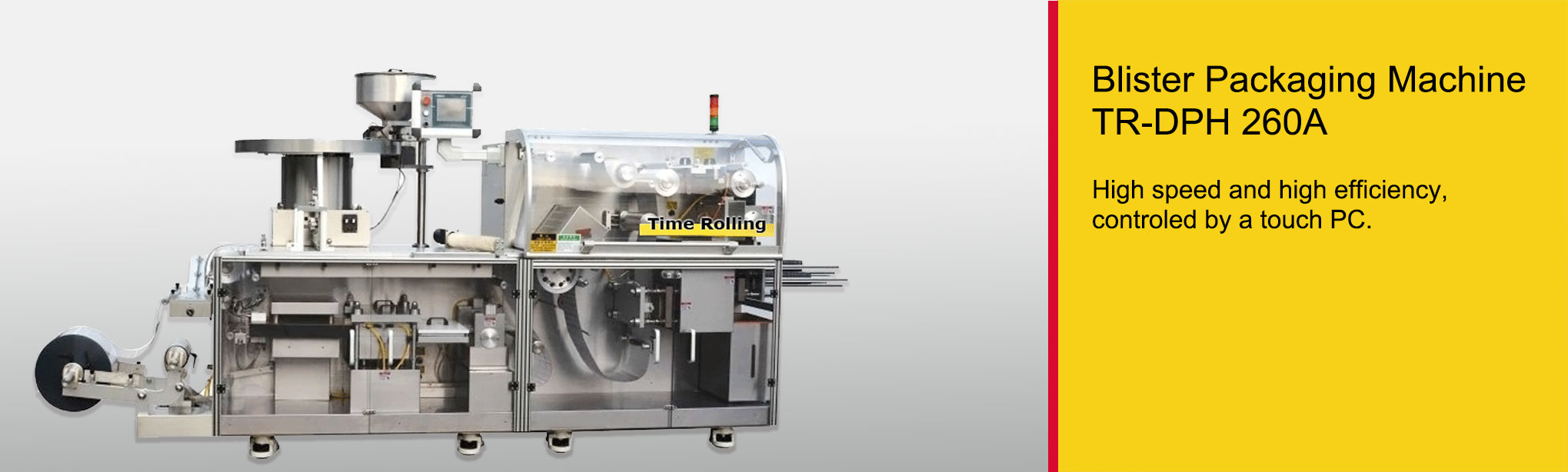

TR-DPH 260A Blister Packing Machine

1, The diameter of forming materials reels can be up to 600mm.

2, Equipped with integrated forming materials splicer to improve the efficiency.

3, Automatic format positioning system guarantees straightforward format changeover.

4, No-waste-trimming cutter with window frame can save lots of packaging materials.

5, It adopts transverse cutter, which easily collects its blister cards and rejects faulty blisters.

6, Well macth subsequent machines, e.g. high-speed cartoners, to establish a whole pharmaceutical packaging line.

7, It can meet GMP requirements.

Model	TR-DPH 260A
Max. Speed:	Alu/Alu 100 punches/min; Alu/PVC 200punches/min
Max. Output:	800 blisters/min. (Alu/PVC Blister size 57-80 mm)
Max. Forming Area:	245x180 mm
Max. Forming Depth:	12 mm
Material:	Max. Width 260 mm
Machine Power:	15kW
Machine Dimension:	4800x1250x2,000 mm
Machine Weight:	2,500 kg

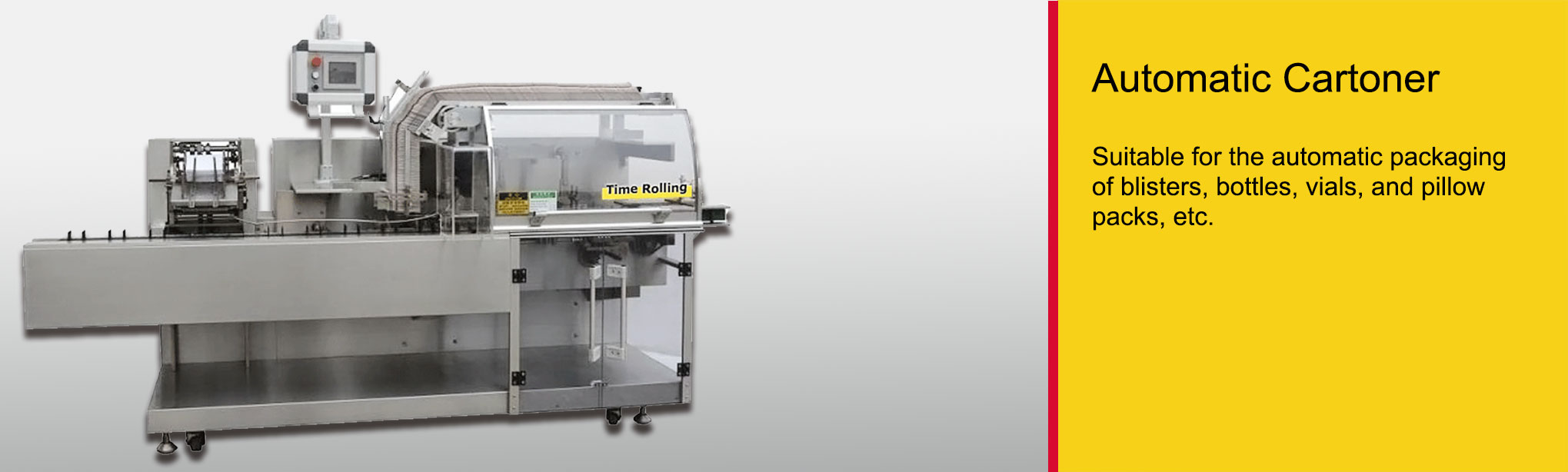

Automatic Cartoner

Automatic Cartoner

TR Automatic Cartoner is an intermittent motion cartoner, suitable for the packaging of blisters, bottles, vials, pillow packs, etc. This machine runs stable and smoothly, it can provide easy changeover for different sizes of cartons. It can fold leaflets, open cartons, insert the products and leaflets into cartons, emboss, tuck-in or hot-melt closures and automatically discharge cartons. The machine is equipped with a series of sensors and automatic protective devices, which can ensure that the machine run safely and effectively. It can be matched with blister packing machine, pillow pack machine, overwrapper etc.to set up a complete production packaging line.

Item	Specification
Max. Output	120 cartons/min.
Range of Carton Size	Max.150x115x50mm Min.55x30x15mm
Machine Power	1.8kw
Machine Dimension	3500x1500x1800mm
Machine Weight	1200kg

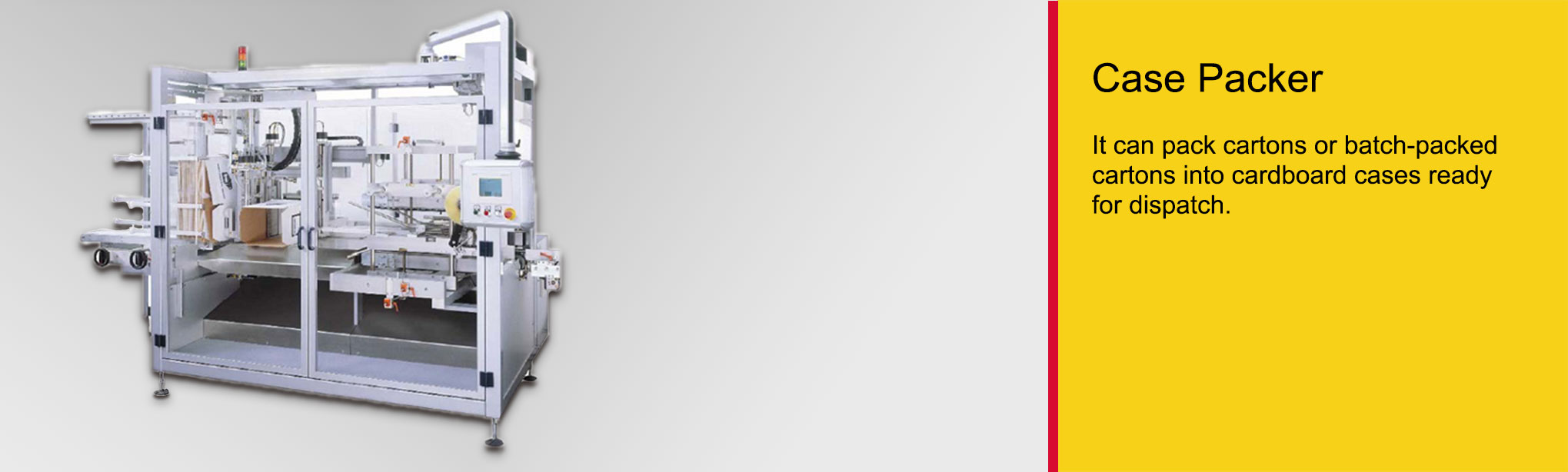

Case Packer

Case Packer

Our case packer is an end-of-line packaging machine. It can pack cartons or batch-packed cartons into cardboard cases ready for dispatch. All the steps, from erecting blank cardboards and filling of cases, to sealing the top and bottom flaps with adhesive tape or hot-melt adhesive (optional), are well engineered for high precision performance.

Item	Specification
Capacity	5 Cartons/minute
Max. Carton Size(LWH)	600x400x380 mm
Min. Carton Size(LWH)	150x150x110mm
Power	3 kW
Air Pressure	0.6 Mpa
Machine Size(LWH)	3200x1820x1900mm
Weight	1,500 kg

Automatic Palletizing Line (Carton Erector, Carton Filling, Carton Sealing, Pelletizing etc.)

Small in size, applying for compact design, precision operation and motion control via servo drive, gripping and palletized of products at random location, high quality!
