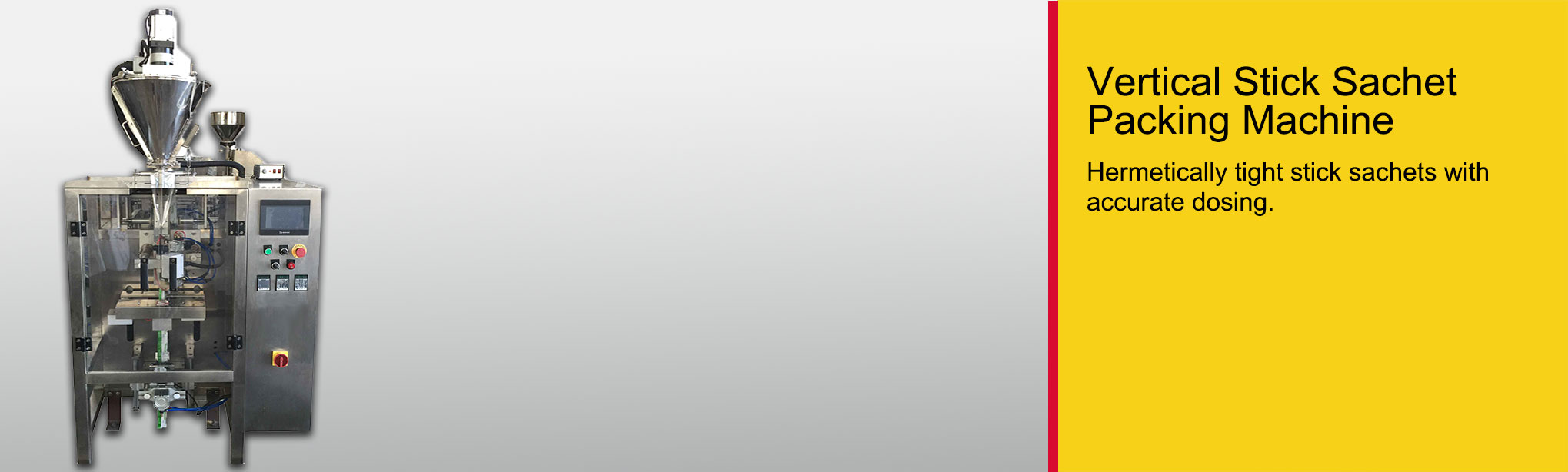

Time Rolling’s automatic vertical packaging machine is designed and produced for producing high quality stick sachets/pouches. It can automatically complete the whole packaging processes including measuring, loading materials, bagging, date printing etc. Our machines have been widely used in pharmaceutical industry, chemical industry, food industry and cosmetic industry etc.
- This machine’s drive control center uses PLC system and pneumatic control system with a super touch screen. The control precision is very high and the sealing performance is excellent. The finished sachets are flat and nice-looking.
- This packaging speed of this machine is very fast, the noise is very low.
- Our machine uses advanced design, which can reduce the packaging materials loss rate very much.
-The main parts are coming from world leading manufacturers.
-All the contact parts are made from SS316L.
-It conforms to the standard of GMP.
Dimension(mm) |
950x1200x1900 |
Filling Range(ml) |
5-100 |
Filling Speed(b/min) |
20-70 |
Shape of bag |
Back seal |
Width of packaging materials (mm) |
220 |
Width of bags (mm) |
20-50 |
Length of bags (mm) |
30-150 |
Voltage(V) |
220 |
Frequency(Hz) |
50 |
Gas consumption (m3) |
0.2 (0.6 Mpa) |

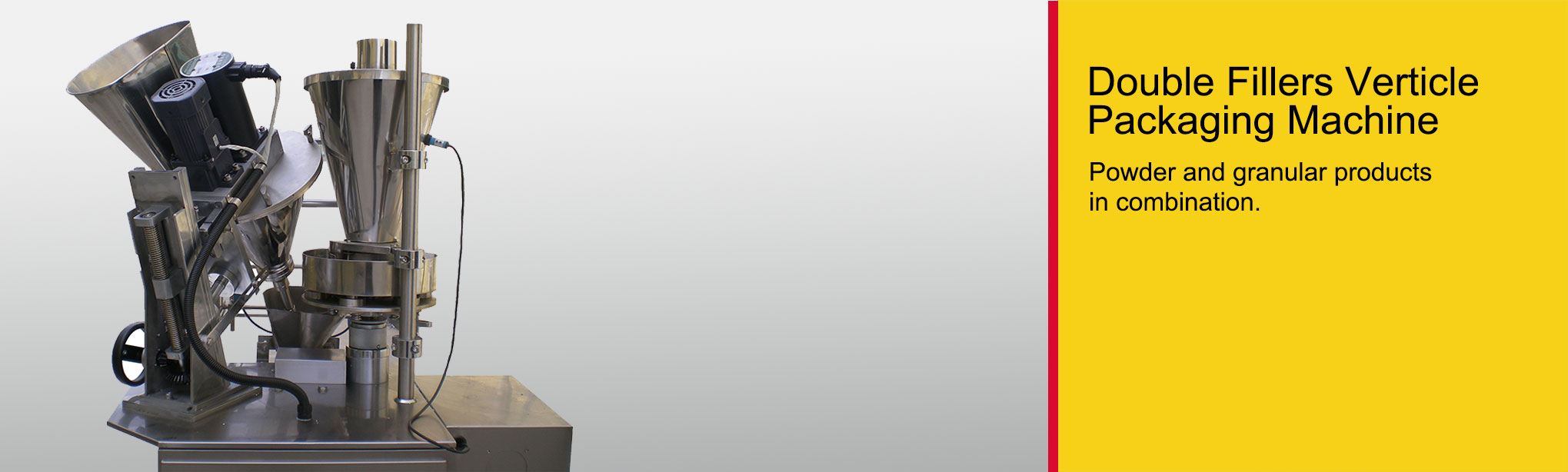

Sachet Machine-Double Fillers Automatic Vertical Packaging Machine
Time Rolling’s Double Fillers Automatic Vertical Packaging Machine can package a wide range of powder and granular products by single machine.
Its auger filler is suitable for normal powder and/or non-free flowing powder.
Its volumetric Filler is suitable for high-free flowing powder and granular.
With above two fillers, our double filler automatic vertical package machine can package most of the powder and granular in pharmaceutical industry, chemical industry, food industry and cosmetic industry etc.

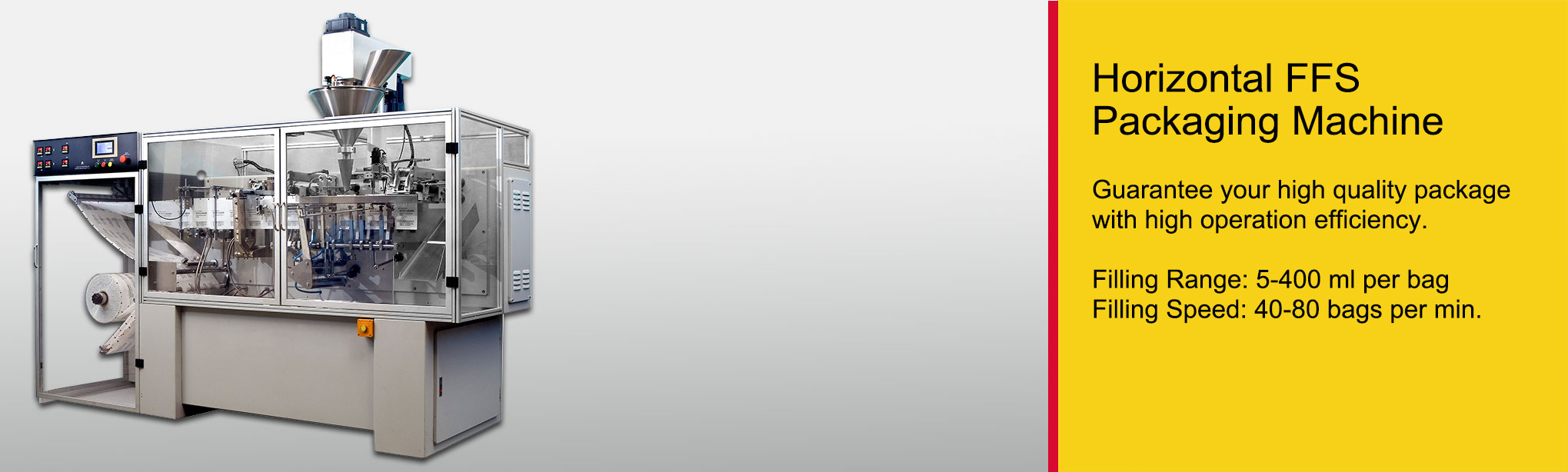

Sachet Machine-Horizontal FFS Packaging Machine
Time Rolling’s Horizontal FFS Packaging Machine is durable with high performance. The filling volume can be easily adjusted by auger.
1. Reel of material;
2. “V” formation;
3. Folding guides;
4. Optical sensor;
5. Bottom sealing;
6. Vertical sealing;
7. Scissors;
8. Pulling fingers;
9. Opener;
10. Funnel;
11. Top sealing.
Time Rolling’s Horizontal FFS Packaging Machine has the function of no bag no filling. If three packs was not filled our machine will stop automatically. When packaging film ending, packing film broken, the system will alarm. When a mechanical failure, the system alarm and stop the machine automatically. With hopper Level sensor and security door switch for alarm or stop the machine automatically.
Our horizontal automatic packaging machines is widely used for food, medicine and other packaging industry. It is suitable for all kinds of multilayer heat-sealable films. With automatic molding, making sachets, cutting, filling and sealing. It can make three sides sealing sachet, four sides sealing sachet

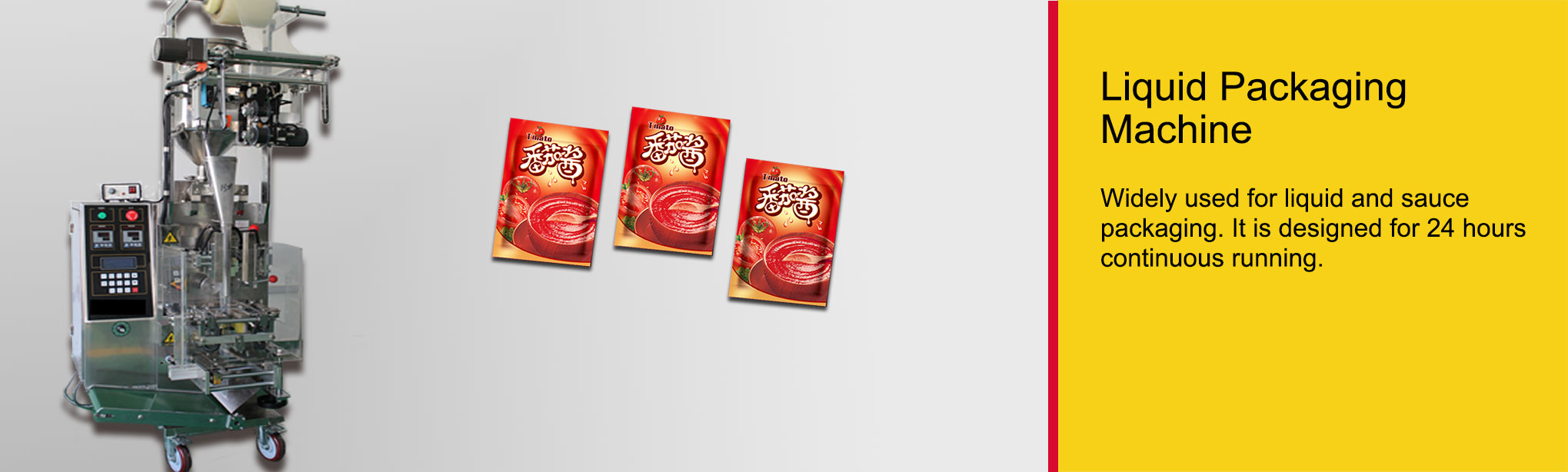

Sachet Machine- Liquid Packaging Machine
Time Rolling’s Liquid Sachet Packaging Machine is widely used in pharmaceutical, cosmetic and food industry. It is controlled by touch PC. This Liquid Sachet Packaging Machine is durable with long service life. It is designed for 24 hours continuous running.
Dimension(mm) |
625x751x1800 |
Filling Range(ml) |
1-100 |
Filling Speed(b/min) |
40-60 |
Shape of bag |
Four sides seal |
Width of bags (mm) |
30-100 |
Length of bags (mm) |
30-150 |
Voltage(V) |
220 |
Frequency(Hz) |
50 |
Power (W) |
1800 |
Our liquid sachet packaging machine can be used for instant noodles sauce packets packaging, honey sachet packaging, ketchup/ tomato sauce packaging, chili sauce packaging, skin cream sachet packaging, face cream sachet packaging, shampoo sachet packaging and bath gel sachet packaging etc.
