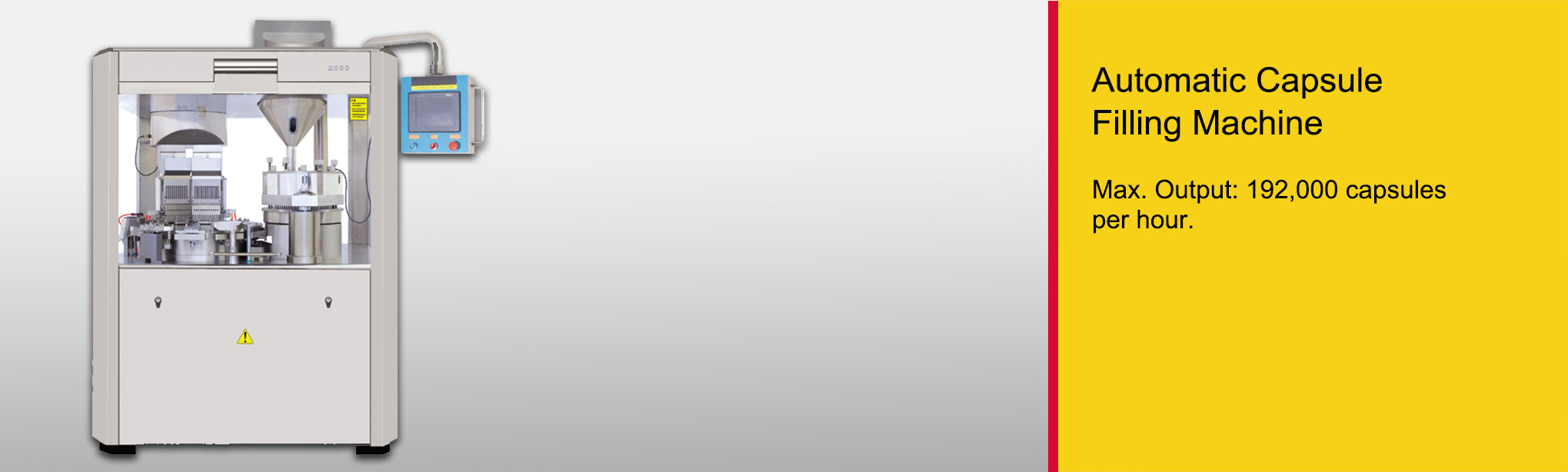

Time Rolling offer a large range of automatic capsule filling machines including NJP500, NJP800, NJP1200, NJP2200, NJP3200 etc. Our machines can be customerized produced as per our client's special and/or specifical requirements.
Our capsule filling machine uses the same design as some world leading brand capsue filling machines. It has the excellent performance with high quality, It is a durable machine with low maintainence. We strong recommend it a most cost-effective solution to pharamceutical production line.
PLC control with touch screen;
Contact materials: SUS 316L;
Conform to GMP requirements for medicine production;
Durable with low maintenance;
It uses world leading brand parts including SIMENS, Schneider, Omron, SKF etc.
It use SIMENS vacuum pump, which can guarantee the high stability and long service life;
High precision with low noise.
Model |
NJP3200 |
NJP2200 |
NJP1200 |
No. of die orifice |
23(Double) |
19(Double) |
9 |
Max Output(capsules/h) |
192,000 |
132,000 |
72,000 |
Vacuum |
110m3/h -0.08-0.04Mpa |
110m3/h -0.08-0.04Mpa |
27m3/h -0.02-0.08Mpa |
Capsules number |
00-5# |
00-5# |
00-5# |
Filling percentage |
≥ 99% |
≥ 99% |
≥ 99% |
Filling difference |
<±3 |
<±3 |
<±3 |
Idle load noise db(A) |
< 73 |
< 73 |
< 73 |
Power |
380V 50Hz 6KW |
380V 50Hz 5KW |
380V 50Hz 3KW |
Size L*W*H (mm) |
1420x1180x2150 |
1200x1070x2100 |
800x750x1950 |
Weight (kg) |
2000 |
1500 |
850 |

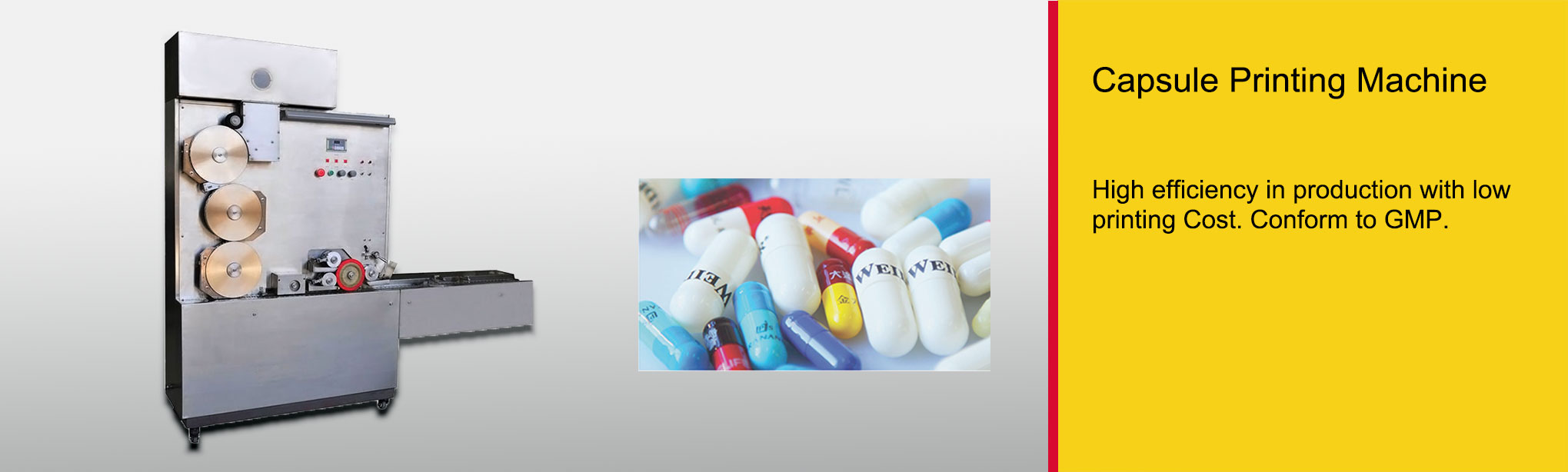

The whole capsule printing machine is desgined compactly. All the surfaces and the contacted parts are made from stainless steel 316L. It can meet the requirements of GMP standard. It adpots variable frequency speed regulation and touch screen electric control system. The operation can be very convenient. This machine is high efficency in production with low printing cost. The printing angle for capsule is up to 270°.
This machine is applied to print the outer cap bodies of various specifications and sizes of capsules in a directional and two-color registration manner. And it can also print various characters patterns and trade marks as requested by customers.
