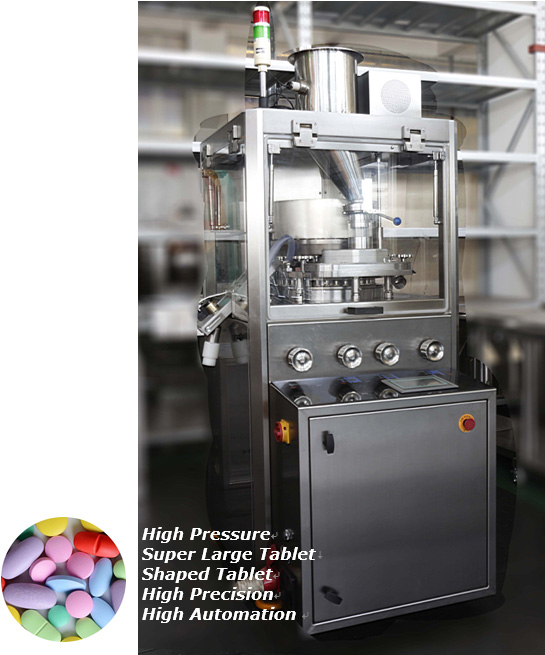

The TRPT-D26 series of high-speed rotary tablet presses is designed for high performance and reliability. Standardized, modular construction makes the series economical for pharmaceutical production.
Main features
- All product-contact parts are made from SS316 / 304 or other FDA-approved materials.
- PLC control.
- Key components from leading brands, including SIEMENS, SCHNEIDER and OMRON.
- Reliable sealing and dust protection.
- High-visibility doors help prevent cross-contamination.
- Parts can be easily removed for maintenance.
- 360-degree access for observation and cleaning.

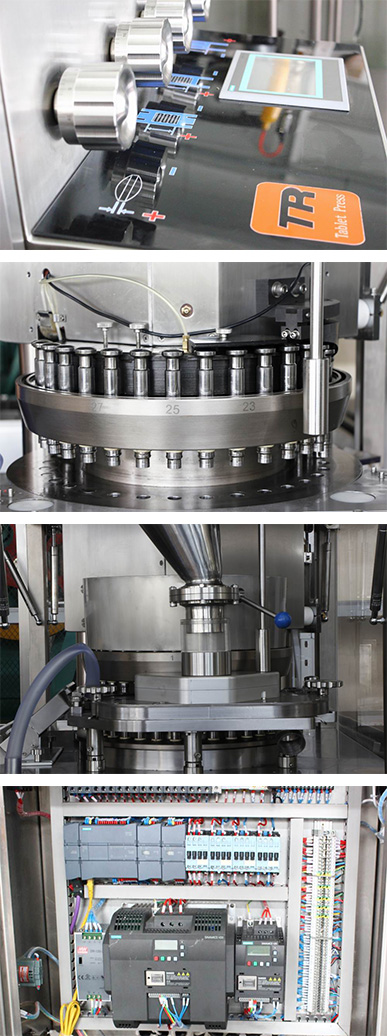

Tablet compression system
Pre-compression and main compression use a compact, five-column design that resists deformation under high loads, supports stable long-term operation, improves tablet-weight accuracy and controls hardness.
Forced-feed system
Two mixers improve granule flow to provide precise feeding to the tablet press.
Automatic tablet-weight control
TRPT-D-series presses use a PLC control system with a POD interface to monitor and control tablet-weight deviations automatically.
Electrical system
Advanced control methods and reliable electrical components from leading suppliers provide programmed control and interlock protection.
Central lubrication
An intermittent, automatic pressure-lubrication system operates at a low flow rate, using a central pump and a high-precision distributor.
TRPT-D26 technical data
| Parameter | Value |
|---|---|
| Dies and punches | 26 sets |
| Tooling type | D |
| Pre-compression force | 30 kN |
| Maximum compression force | 100 kN |
| Maximum tablet diameter | 25 mm |
| Maximum tablet thickness | 10 mm |
| Maximum filling depth | 20 mm |
| Die diameter | 38.1 mm |
| Punch diameter | 25.35 mm |
| Rotational speed | 110 rpm |
| Output | 171 600 tablets/h |
| Voltage / frequency | 380 V / 50 Hz |
| Main motor power | 7.5 kW |
| Dimensions | 820 × 1100 × 1750 mm |
| Weight | 1600 kg |

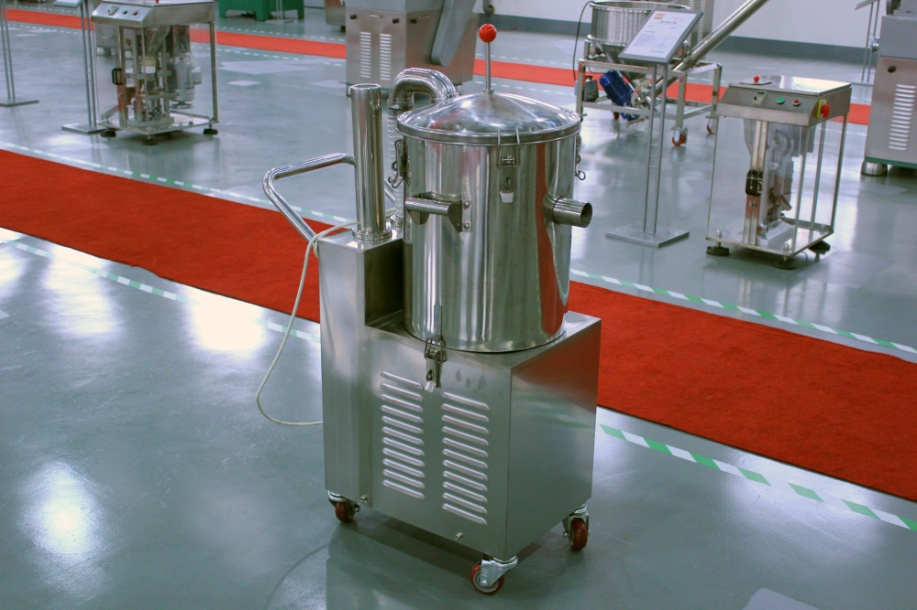

TRCJ-1.1 dust collector
Used to remove dust from equipment and tablet presses in pharmaceutical, food, chemical and other industrial production environments. All product-contact parts are stainless steel.
| Parameter | Value |
|---|---|
| Suction air volume | 360 m³/h |
| Minimum vacuum | 19 500 Pa |
| Total power | 1.1 kW |
| Dimensions | 700 × 460 × 1030 mm |
| Weight | 70 kg |

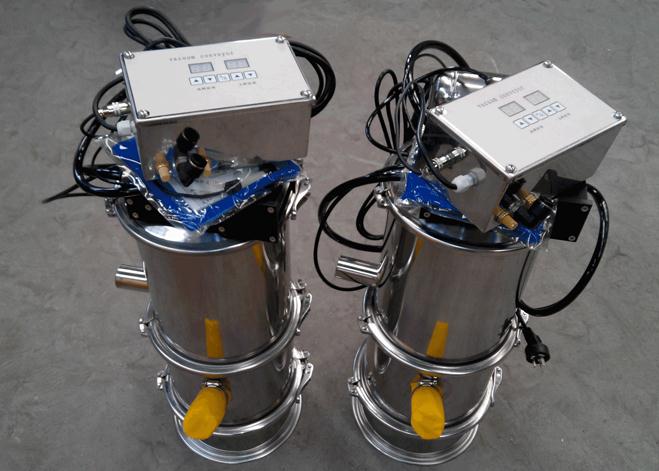

TRVC-1 vacuum loading hopper
This third-generation vacuum conveying system uses a multistage ejector pump and a metal filter. It handles powders and granules and dissipates static electricity.
TRVC-1 features
- Powered by compressed air.
- Complies with GMP standards.
- Prevents segregation of powders and granules.
- Titanium-alloy filters do not wrinkle or wear out.
- Eliminates static electricity.
- Made from non-toxic, corrosion-resistant materials.
- Prevents cross-contamination.
- Materials do not stick to the conveyor’s inner surface.
- Intelligent control and a high level of automation.
- Modular design for easy cleaning and disassembly.
| Parameter | Value |
|---|---|
| Feeding capacity | 350 kg/h |
| Air pressure | 0.6 MPa |
| Air consumption | 180 L/min |
| Dimensions | Diameter 140 × 560 mm |
| Weight | 35 kg |

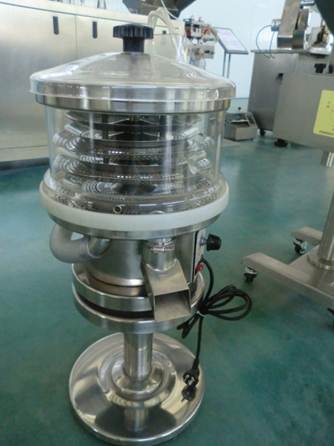

TRFQ-300 tablet deduster
TRFQ-300 is auxiliary equipment for high-speed tablet presses. It removes powder adhering to tablet surfaces during compression and is widely used in the chemical, pharmaceutical and food industries. It also conveys tablets, medicine pieces or granules. Connecting it to a suction unit or blower improves its effect. It has low noise and is easy to maintain.
| Parameter | Value |
|---|---|
| Output | 550 000 tablets/h |
| Maximum noise | 82 dB |
| Dust removal distance | 3 m |
| Pressure | 0.2 MPa |
| Dimensions | 410 × 410 × 880 mm |
| Weight | 35 kg |

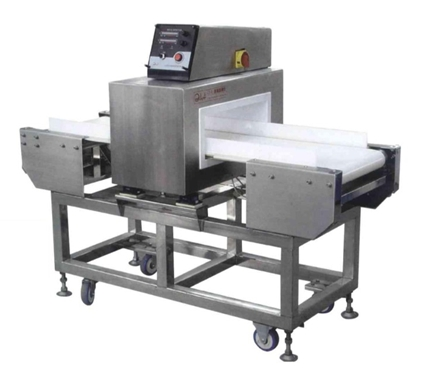

TRTF-II metal detector
This metal detector detects metallic contaminants and can be used in a tablet-press production line.
| Parameter | Value |
|---|---|
| Ferrous-metal sensitivity (Fe) | Diameter 1.0 mm |
| Stainless-steel sensitivity (s.s.) | Diameter 2.0 mm |
| Inspection width | 400 mm |
| Inspection height | 150 mm |
| Motor power | 1.5 kW |
| Dimensions | 1300 × 830 × 1000 mm |
| Weight | 300 kg |
