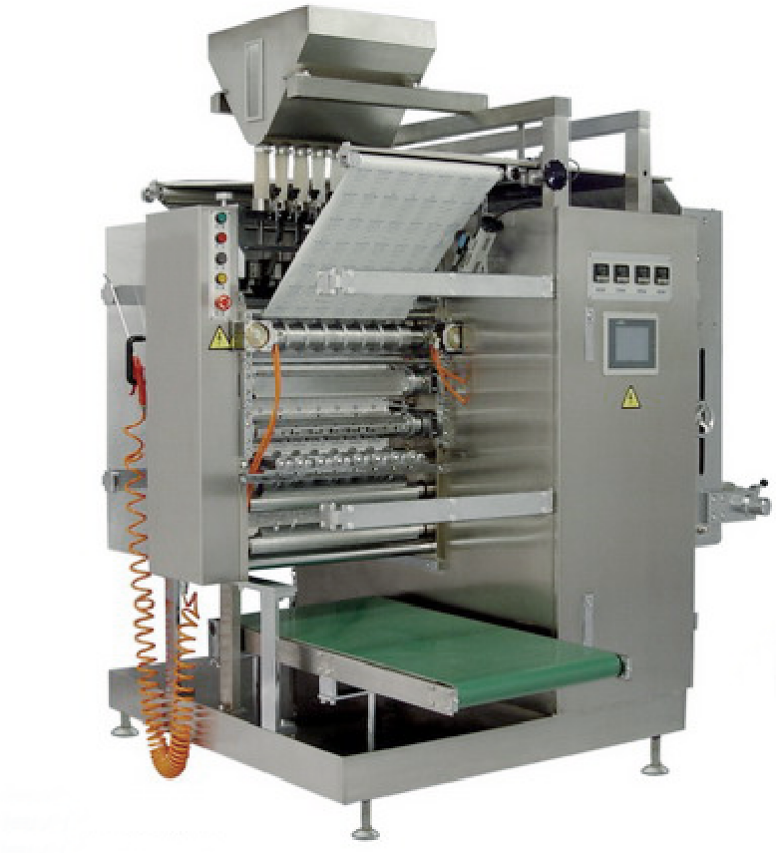

The TRGM-series vertical filling and packaging machine is designed for easy maintenance, high efficiency and reliability. It provides economical, high-output packaging of granules and free-flowing powders for pharmaceutical and food applications.
Main features
- All product-contact parts are made from SS316 / 304 or other FDA-approved materials.
- PLC control.
- Servo-driven main motor.
- Photoelectric registration ensures accurate positioning of film cuts.
- Key electrical components are from leading brands, including SIEMENS, MITSUBISHI and AUTONIC.
- Bag length can be adjusted on the touch screen without replacing parts.
Options
- Remote control
- Conveyors
- Empty-bag rejection

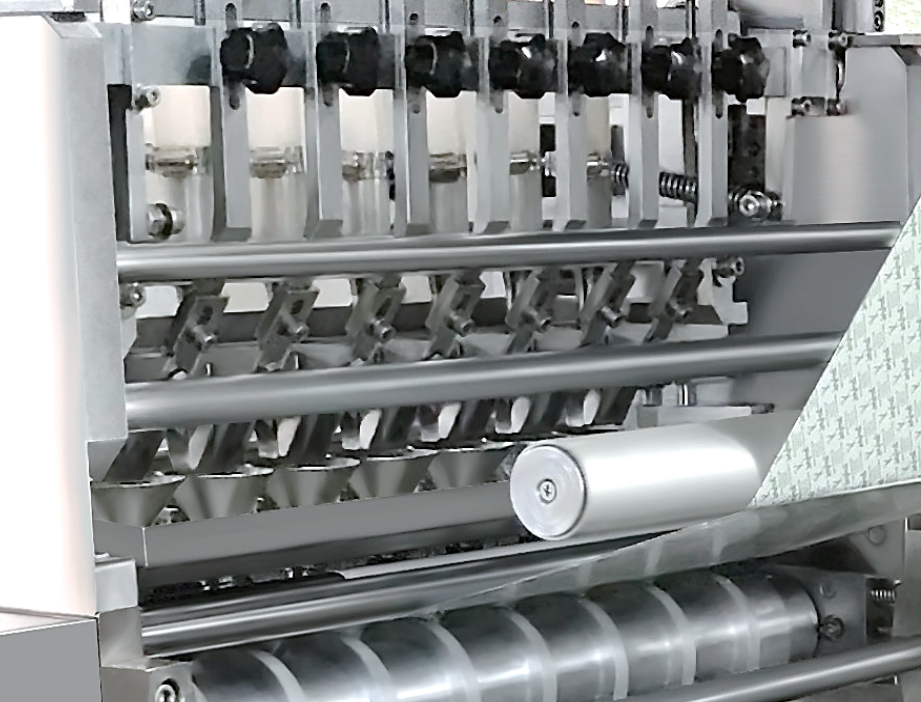

Volumetric dosing system
The cup dosing system handles free-flowing powders and granules.
- The newly developed horizontal dosing unit is more accurate than the previous oscillating type.
- The tubes move vertically and their position can be adjusted for greater accuracy.
- Low leakage and easy maintenance.
Vertical sealing system
Precise control of sealing time and temperature ensures reliable seals.

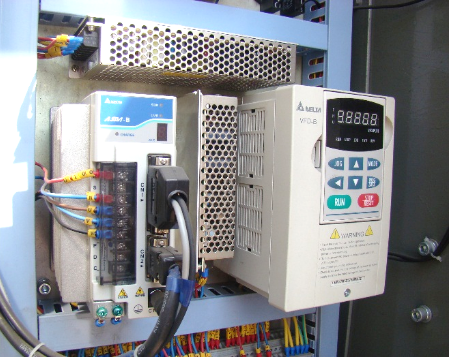

Servo motors
An optional full-servo system provides high performance.
Technical data
| Parameter | Value |
|---|---|
| Output per lane | Up to 60–70 bags/min |
| Sachet lanes | 10 maximum |
| Width | 1080 mm maximum |
| Packaging materials | Paper/Al/PE; PET/Al/PE |
Pack sizes are available on request.
