The high-speed stick-pack line for granular products includes a packaging machine, conveyors and cartoning machines.

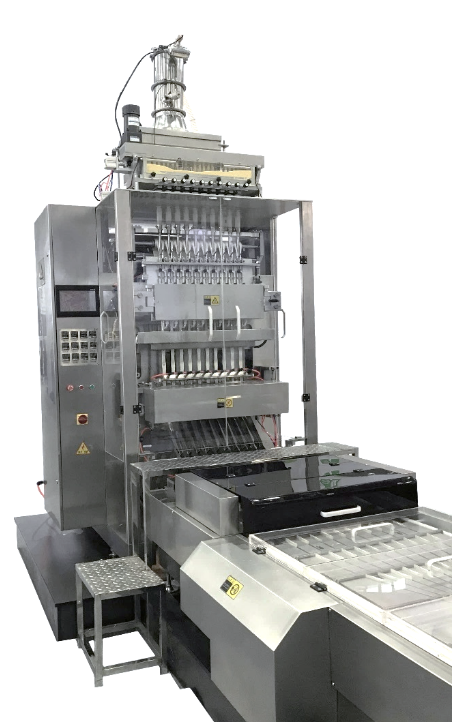

Stick-pack machine
The machine has up to 16 lanes and a maximum output of 800 sachets per minute. It is designed for high-output packaging of granules and free-flowing powders.
Main features
- All product-contact parts are made from SS316 / 304 or other FDA-approved materials.
- PLC control.
- Servo-driven main motor.
- Photoelectric registration ensures accurate positioning of film cuts.
- Key electrical components are from leading brands, including SIEMENS, MITSUBISHI and AUTONIC.
- Bag length can be adjusted on the touch screen without replacing parts.
Options
- Remote control
- Conveyors
- Empty-bag rejection
Vertical sealing system
Precise control of sealing time and temperature ensures reliable seals.
Servo motors
An optional full-servo system provides high performance.
Technical data
| Parameter | Value |
|---|---|
| Output per lane | Up to 60–70 bags/min |
| Stick-pack lanes | 16 maximum |
| Roll width | 1080 mm maximum |
| Packaging materials | Paper/Al/PE; PET/Al/PE |
Pack sizes are available on request.
Cartoning machine
TRZH-series cartoning machines can be combined with TRGM-series sachet/stick machines to form a high-speed packaging line.
| Parameter | Value |
|---|---|
| Output | 120 boxes/min maximum |
| Maximum box size | 150 × 115 × 50 mm |
| Minimum box size | 55 × 30 × 15 mm |
