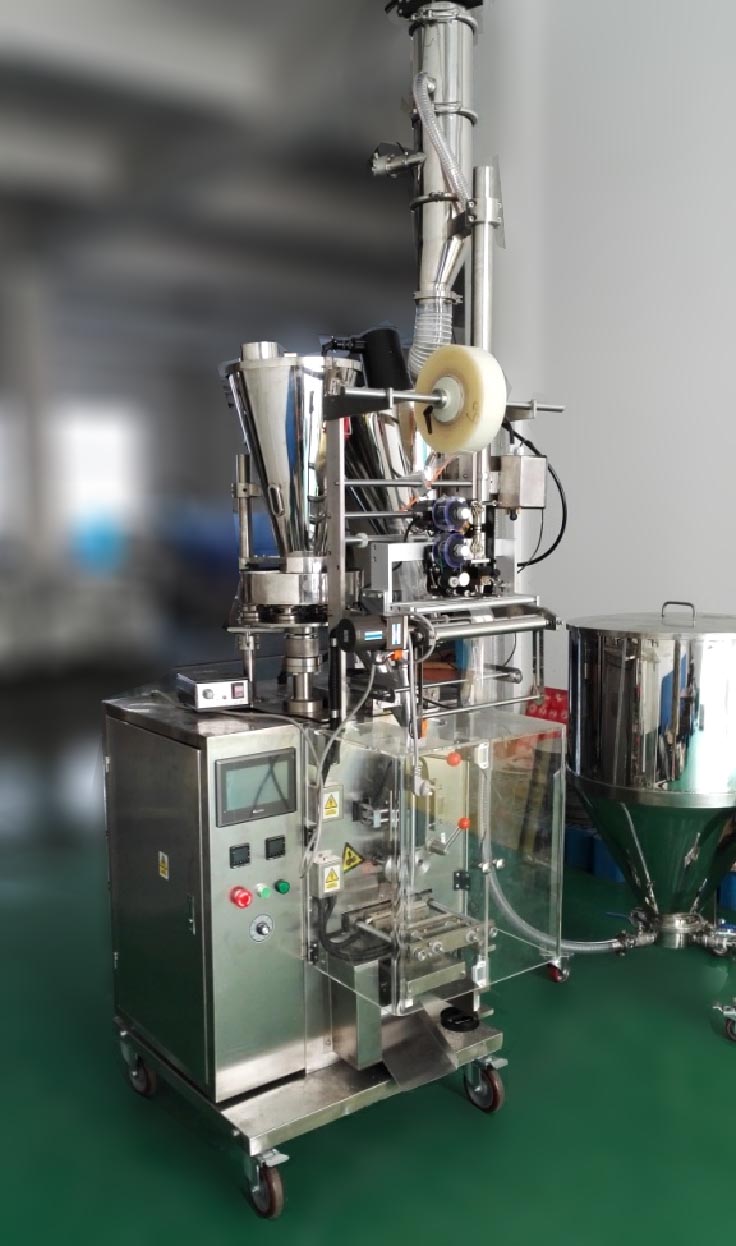

The TRF-340B automatic vertical filling and packaging machine is a compact, economical solution for sachet and stick packs. Two dosing systems handle powders and granules respectively, followed by forming and sealing. A single machine can simultaneously pack free-flowing and non-free-flowing powders and granular products, automatically completing dosing, forming, sealing, and batch-number and production-date printing.
Main features
- Equipped with both an auger dosing system and a volumetric cup dosing system.
- PLC drive control.
- Touch-screen operation.
- High control accuracy and reliable sealing produce flat, neatly finished packs.
- Photoelectric registration keeps bags centred.
- Very low noise.
- Advanced design significantly reduces packaging material losses.
- Stainless-steel front housing. Product-contact parts are SS316 or SS304, according to customer requirements.
- Complies with the GMP standard.
- Compact design.

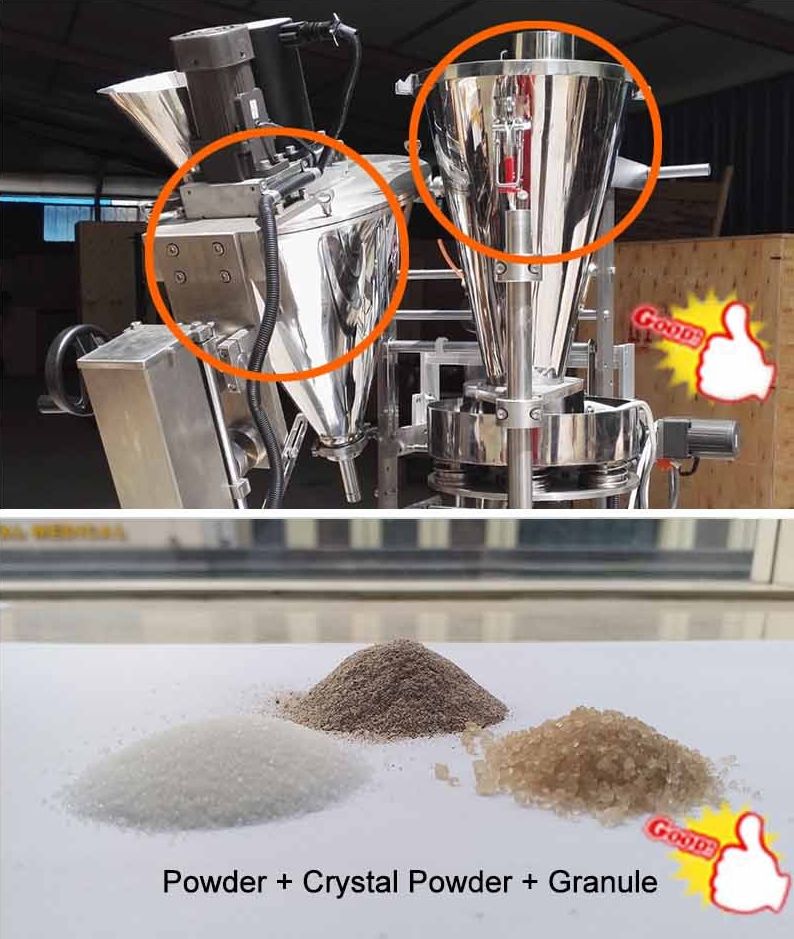

Auger dosing system
The powder dosing system has two brushless motors for vibration and feeding.
- A stepper motor drives the auger for high dosing accuracy.
- The auger can be replaced to suit the required dosing volume.
- All product-contact parts are SS316.
Volumetric dosing system
The volumetric system uses measuring cups for free-flowing powders and granules.
- Measuring cups can be replaced to suit the dosing volume.
- All product-contact parts are SS316.

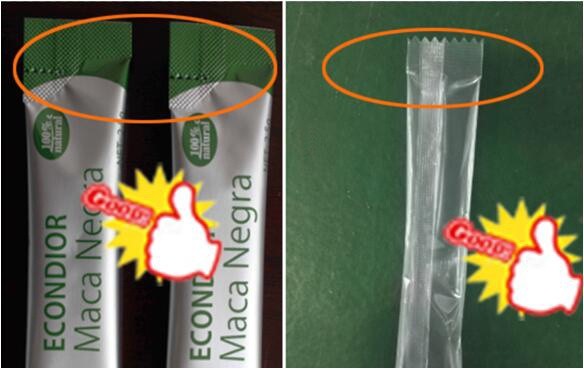

Horizontal sealing and cutting of stick packs
Blades cut the packs after heating and sealing to produce secure seals and neat edges.
- First stage: heating and sealing.
- Second stage: cutting.
- Special blades produce serrated edges, rounded notches or straight cuts.
