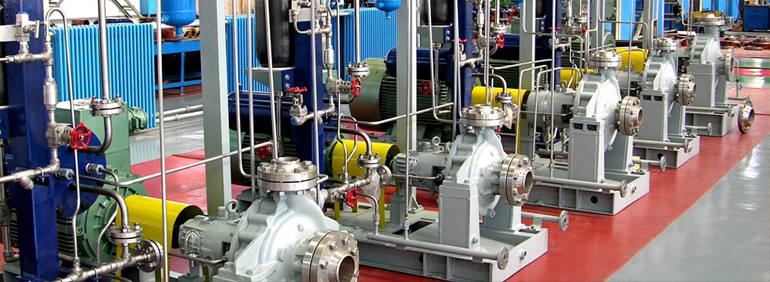

Chemical industry pumps

Design and equipment

API 610 pumps for industrial processes

Selection of pumps and spare parts taking into account the working environment, operating mode and project requirements. The main parameters and equipment are agreed upon according to the technical specifications.

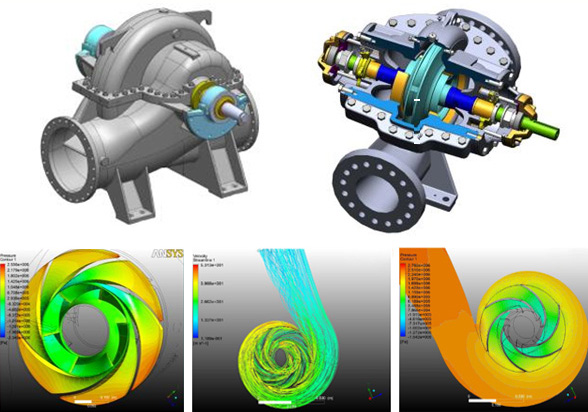

Design of the API 610 pump and design illustrations of the flow path — Design and calculation illustrations of the flow part.

Hydraulic part

Under your process operating point

When selecting, flow rate, pressure, temperature and properties of the pumped medium are taken into account. The design of the flow part is consistent with the operating conditions.

Flow, pressure and operating range
Materials tailored to the work environment

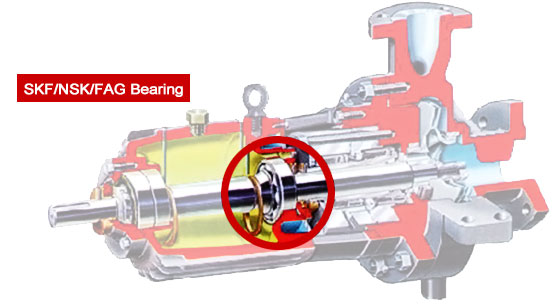

Arrangement of SKF, NSK or FAG bearings in the pump design — Location of the bearing assembly in the pump design.

Bearing unit

Equipment according to specification

The type of bearings and lubrication system are determined by the selected pump version. The use of SKF, NSK or FAG is agreed upon when specifying the configuration.

Bearing manufacturer and designation
Lubrication system and service conditions

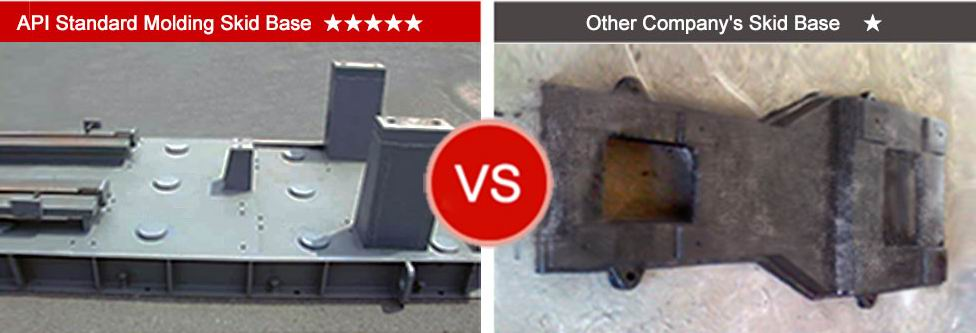

Support frame

Including installation and maintenance

The frame design is consistent with the dimensions of the pump and drive, mounting diagram and installation conditions. Landing dimensions are specified according to the drawings.

Location of pump, coupling and drive
Mounting and service access

Execution options

Pumping units

Examples of equipment layout. The execution of a specific unit is determined by the technical specifications.

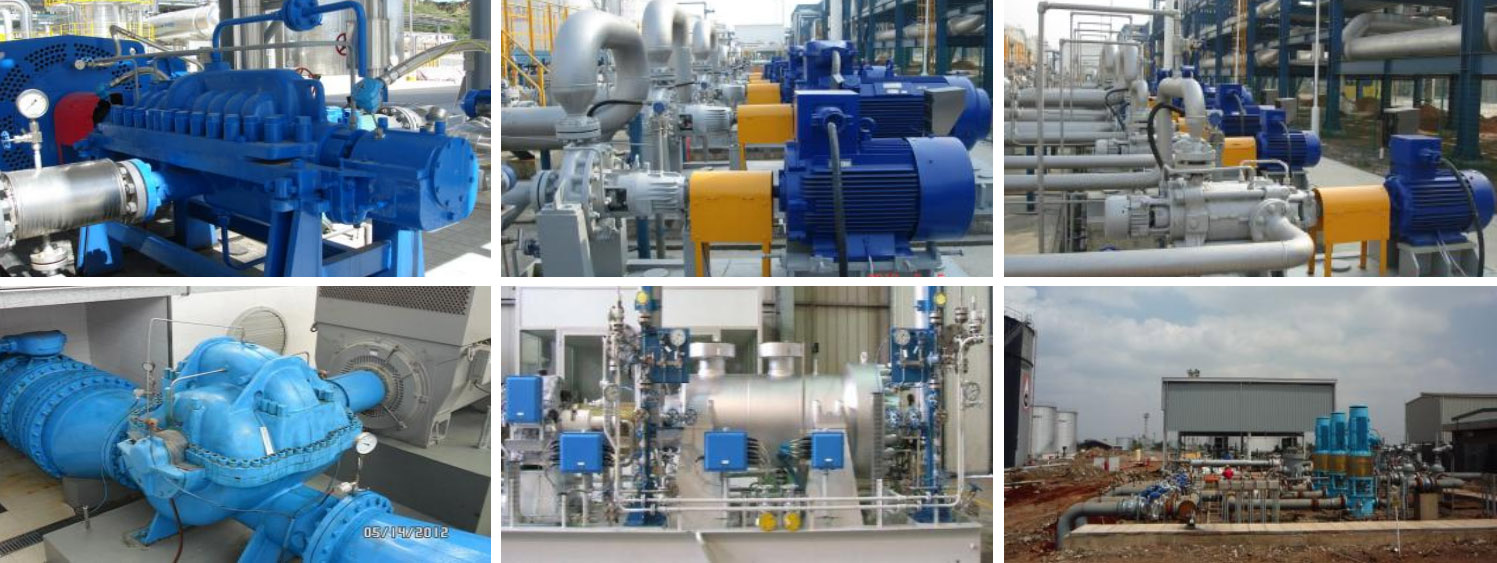

Six examples of API 610 industrial pumping unit layouts

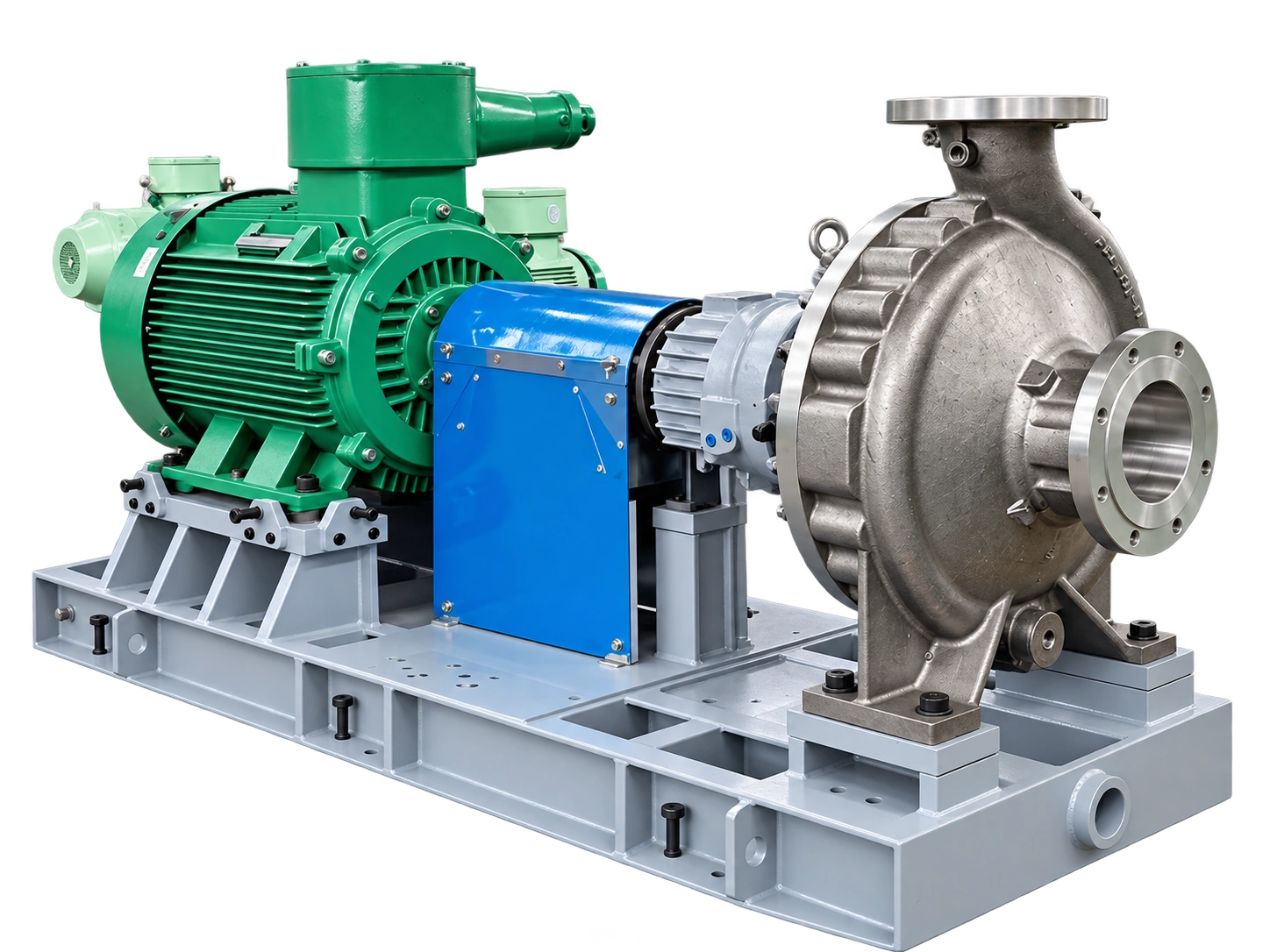

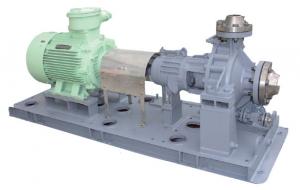

Overhung Pumps

Single stage centrifugal cantilever industrial pumps...

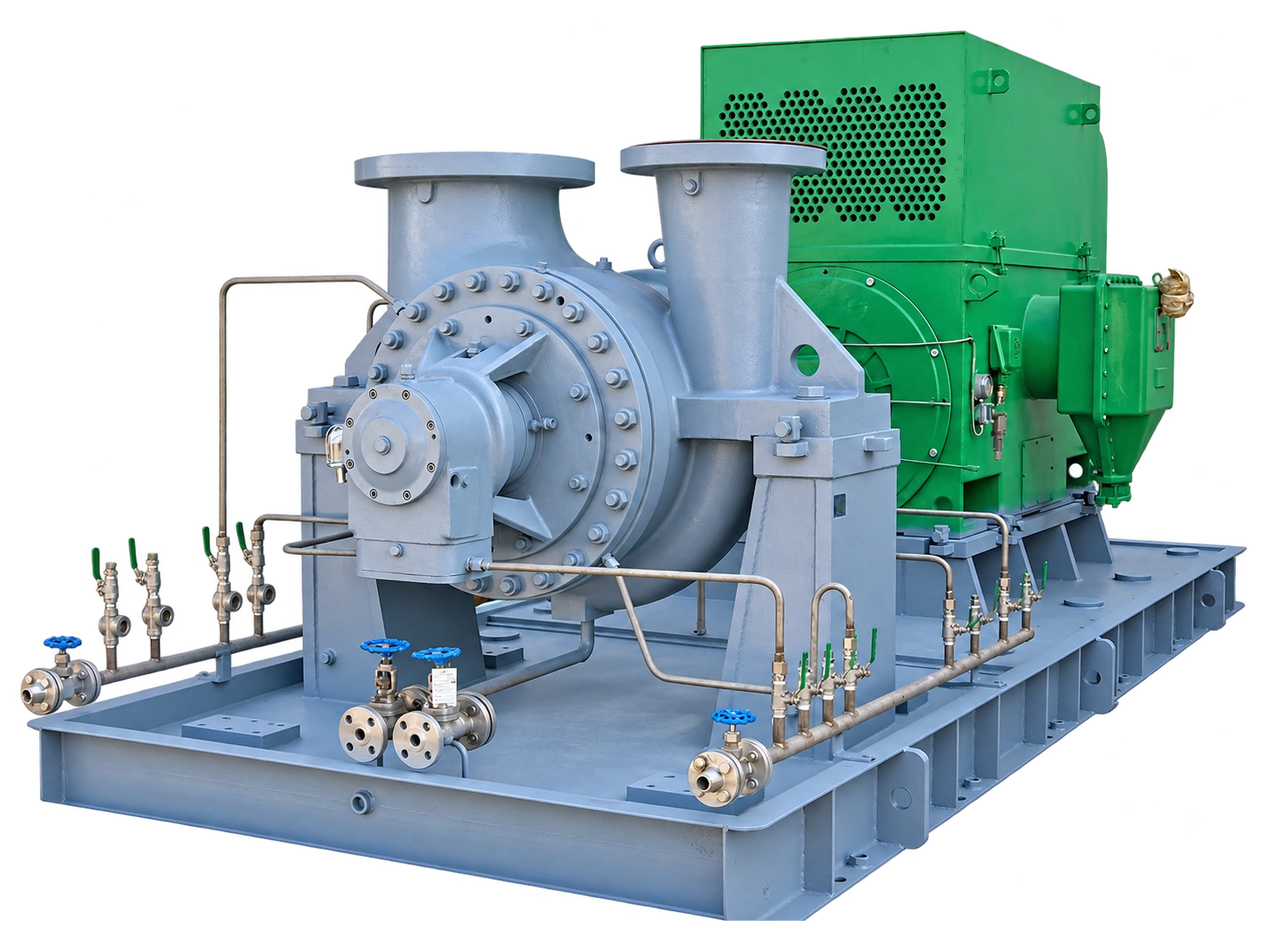

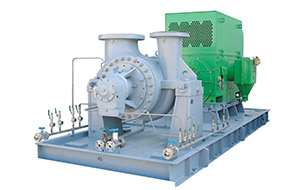

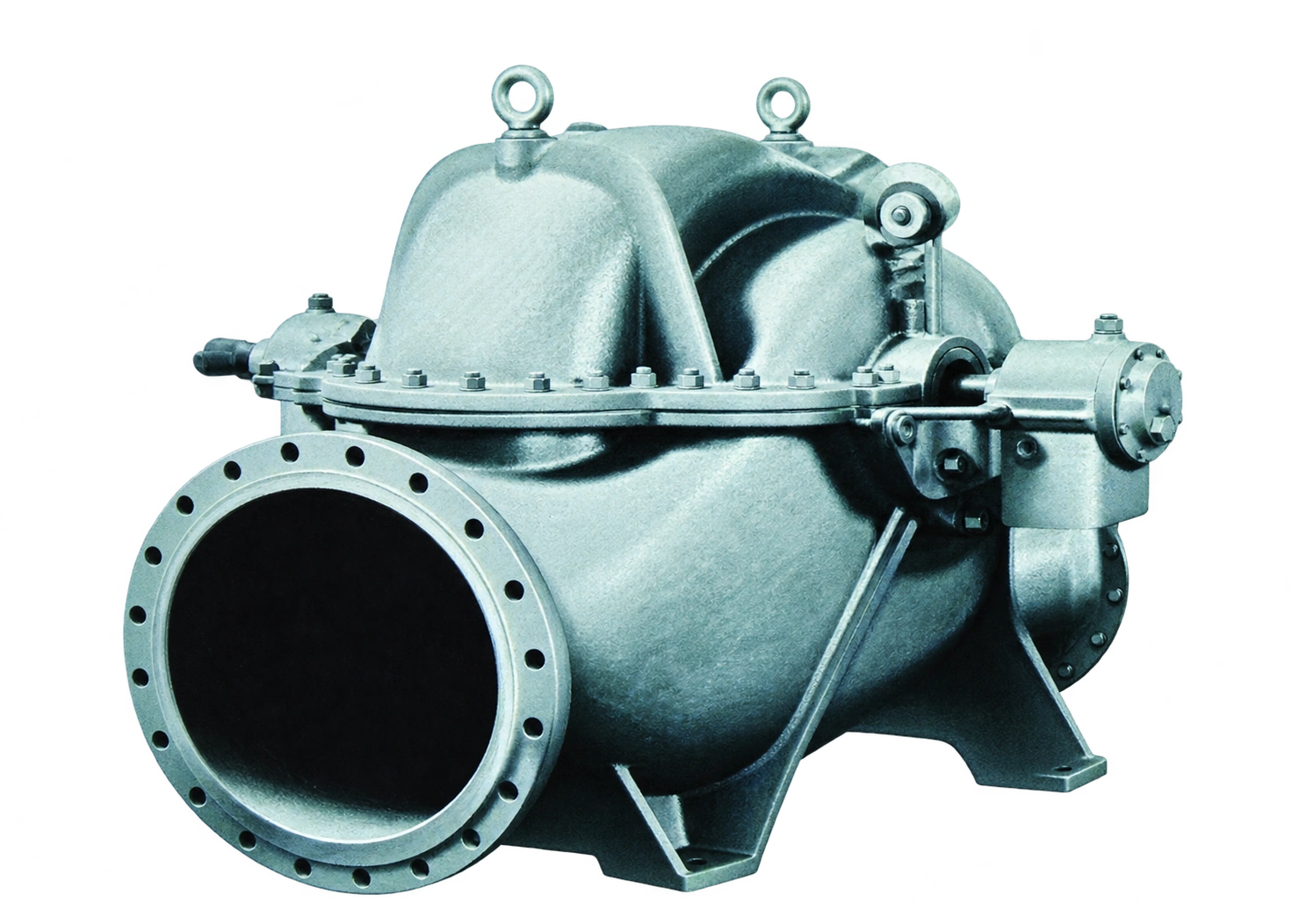

Between-Bearings Double-Suction Pumps

Interpodal pumps, double-casing pumps, horizontal pumps...

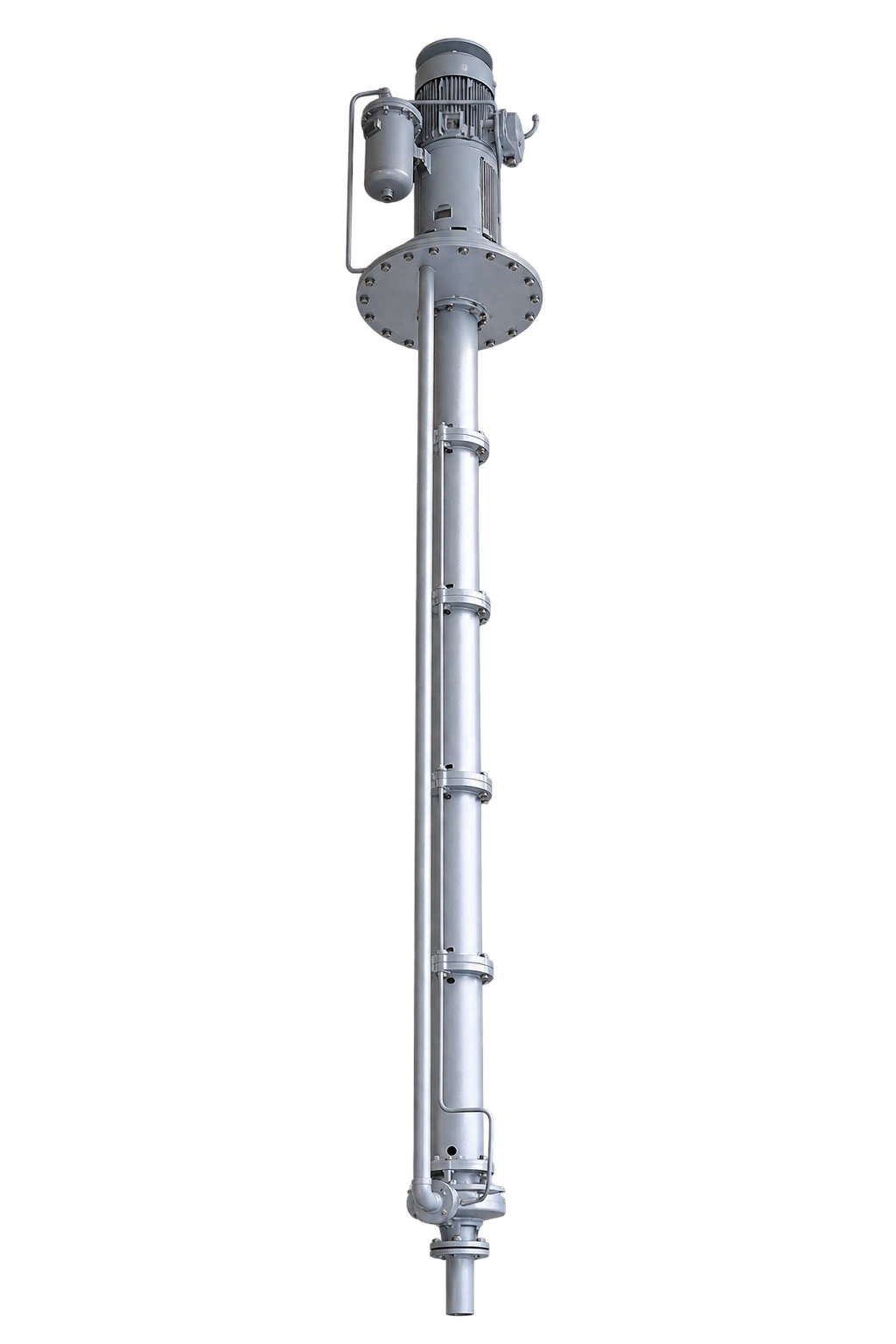

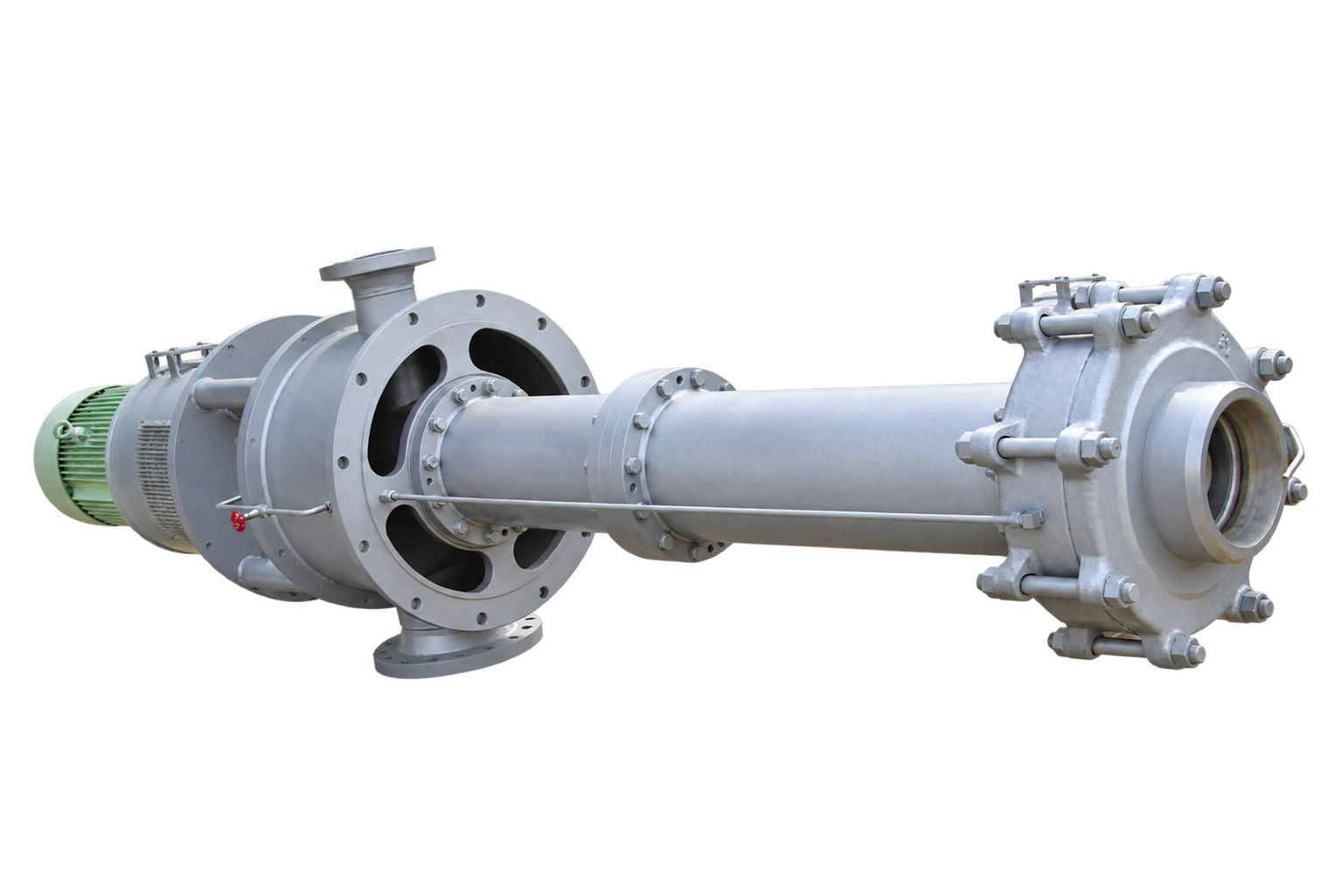

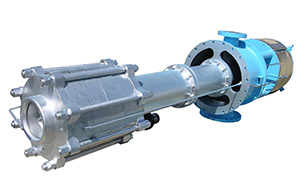

Vertical Sump Pumps

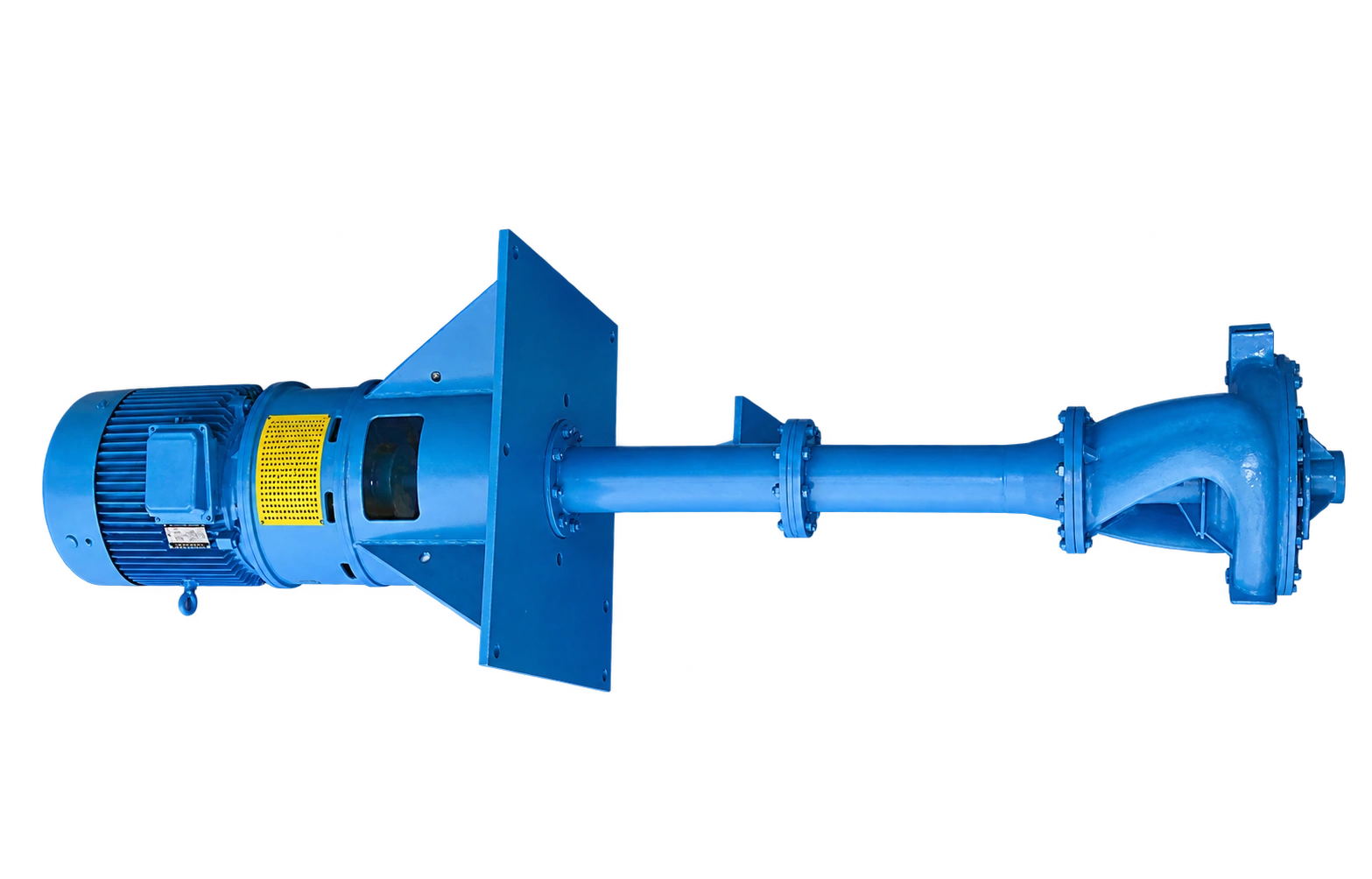

Vertical Sump Pumps, API 610 VS2， VS4, VS6

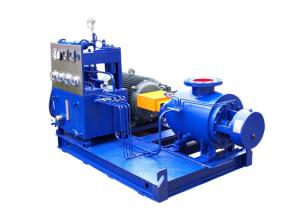

Screw Pumps

Twin screw pumps, single screw pumps

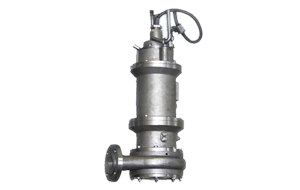

Others

Diagonal pumps and submersible pumps

Send us your inquiry

Please share your detailed technical requirements with us for review.

Request a quote
