Automatic Liquid Filling Machines
Match the filling method to the liquid, viscosity, container and required output. Time Rolling supplies bottle fillers, linear piston and rotary systems, ointment fillers and plastic filling-and-sealing equipment for pharmaceutical, cosmetic, food and chemical products.
- Product formats
- Liquids & viscous products
- Packaging options
- Bottle & unit-dose packs
- Filling comparison
- Model-specific ranges

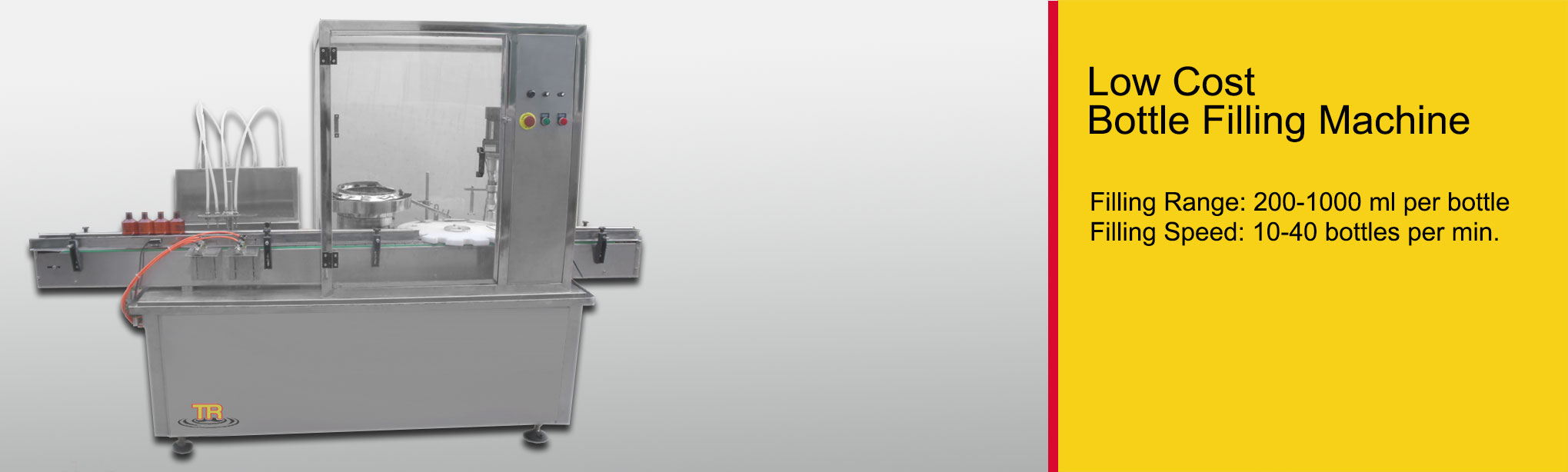

Bottle filling for smaller production runs
This bottle filling machine handles 200–1,000 ml fills at a specified speed of 10–40 bottles per minute. It offers an automatic option for smaller-output projects and can be configured to the required application.
| Dimension（mm） | 3000×1550×1650 |
|---|---|
| Filling Range（ml） | 200-1000 |
| Filling Speed(b/min) | 10-40 |
| Filling Accuracy Error（%） | ±1-2 |
| Voltage（V） | 220 |
| Frequency（Hz） | 50 |
| Conveying Direction | L→R / R→L |

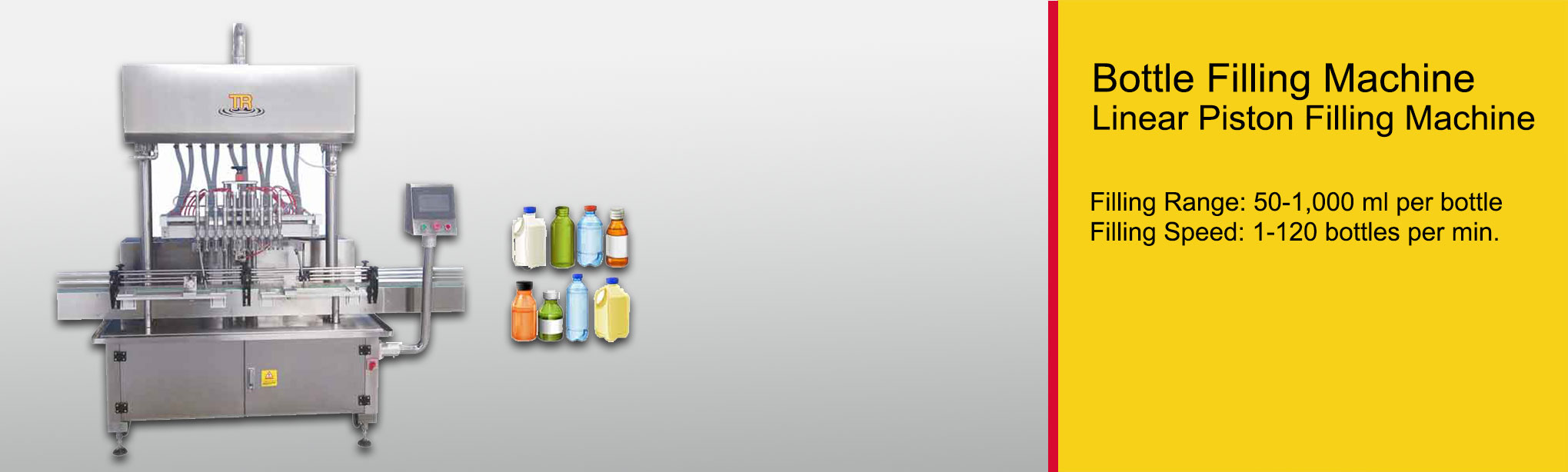

Linear piston filling machine
The linear piston filler handles a range of liquid and viscous products. Its top-mounted hopper supplies the dosing system, while servo drives control the dosing pumps and nozzle carrier.
- Filling size set through the touchscreen control interface.
- 316L product-contact parts.
- Suitable for pharmaceutical, cosmetic, chemical and food products.
- Designed for GMP production requirements.
| Dimension（mm） | 2000×1700×1900 |
|---|---|
| Filling Range（ml） | 50-1000 |
| Filling Speed(b/min) | 1-120 |
| Filling Accuracy Error（%） | ±0.5-2 |
| Voltage（V） | 220 |
| Frequency（Hz） | 50 |
| Working Pressure (Mpa) | 0.4-0.6 |
| Gas Consumption (m3) | 0.1-0.5 |
| Conveying Direction | L→R / R→L |

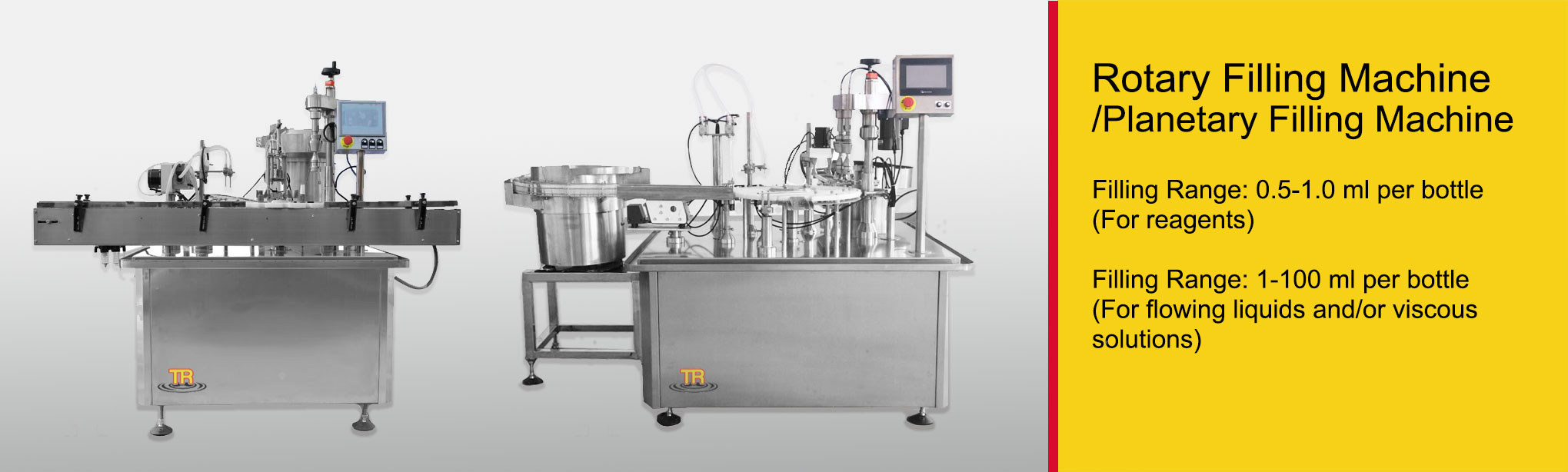

Rotary & reagent filling systems
Rotary filling equipment is available for flowing liquids and viscous solutions in the 1–100 ml range. Reagent systems cover 0.5–1.0 ml fills and combine filling, bottle unscrambling and cap screwing.
- Configurable filling, plugging, capping, cap-screwing or cap-pressing operations.
- Filling is disabled when bottles are absent; capping is disabled when a plug is missing.
- Anti-drip filling and linked operating safeguards.
- 316L product-contact parts and a design for maintenance access.

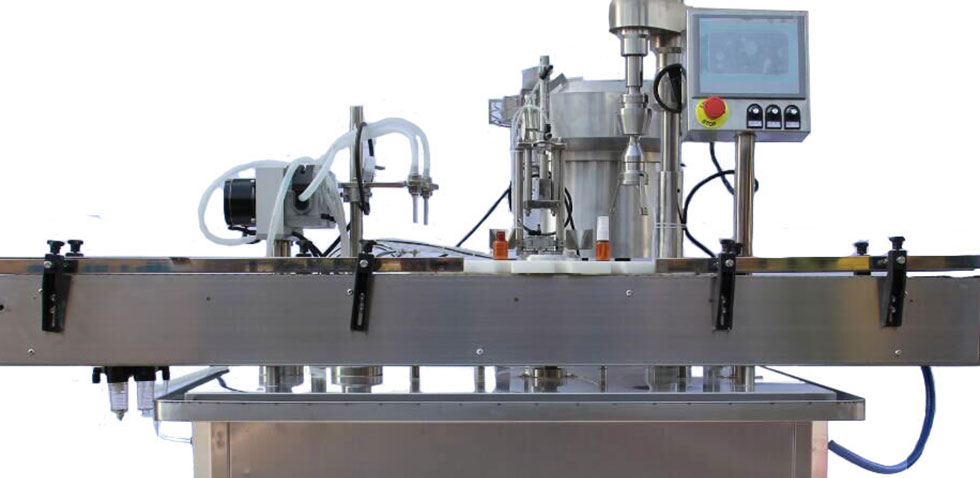

Rotary filling equipment for liquid and viscous-product applications.

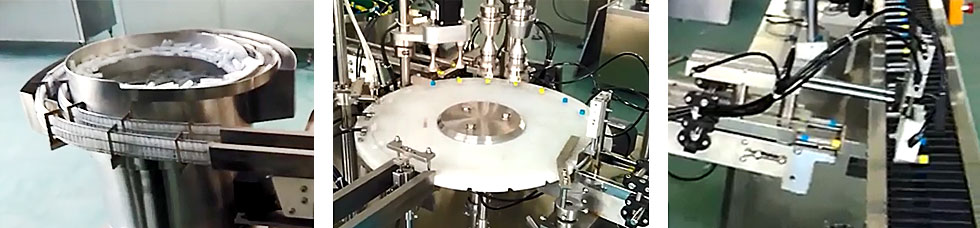

Integrated small-volume reagent bottle filling and capping.

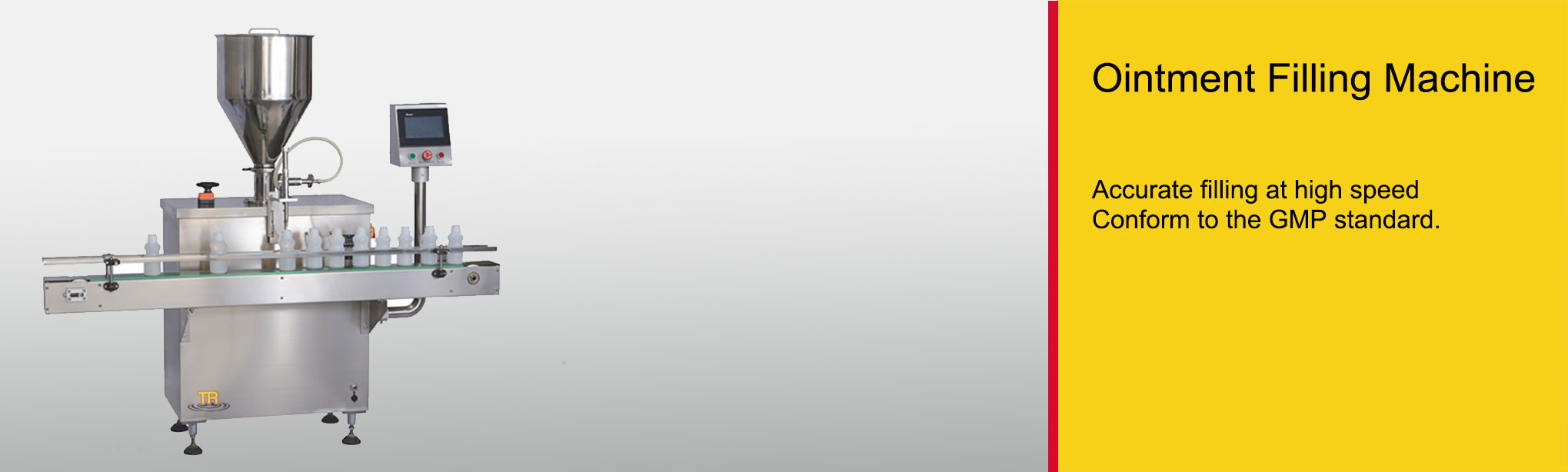

Ointment filling machine
The ointment filler is designed for pharmaceutical and cosmetic products. Fill volume is controlled through the cylinder piston stroke, with single-head or multiple-head arrangements available.
- Optional hopper heating and insulation.
- Filling disabled for missing or fallen bottles.
- Anti-drip filling and 316L product-contact parts.
| Dimension（mm） | 1800×750×1750 |
|---|---|
| Filling Range（ml） | 50-1000 |
| Filling Speed(b/min) | 1-60 |
| Filling Accuracy Error（%） | ±0.15-0.3 |
| Voltage（V） | 220 |
| Frequency（Hz） | 50 |
| Working Pressure (Mpa) | 0.4-0.6 |
| Gas Consumption (m3) | 0.1-0.5 |
| Conveying Direction | L→R / R→L |

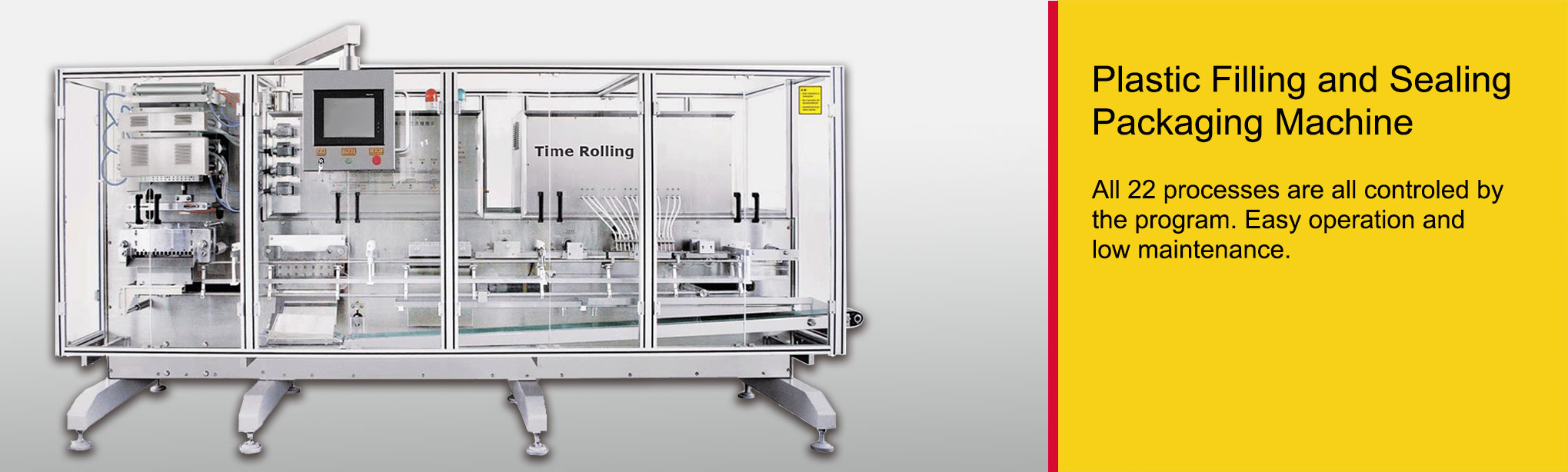

Plastic filling & sealing machine
The PFS system combines plastic forming, filling and sealing. A programmed sequence controls 22 processes, with PLC operation, variable-frequency speed adjustment and a large touchscreen.
- Stainless steel construction for GMP production requirements.
- Filling head designed to reduce dripping, leakage, bubbles and overflow.
- Specified capacity range: 1–60 ml.
- Designed for routine operation and maintenance access.
| Model | PFS |
|---|---|
| Max forming depth | 13 mm |
| Cutting frequency | <22 time/min |
| Packing speed | <20 plates/min 8~16 flasks/board |
| Dimensions of pvc/pe | 0.3x345 mm |
| Capacity | 1~60 ml |
| Air consumption | 110 l/min |
| Water consumption | 6 l/min |
| Power | 380V 50Hz 12kW |
| Size | 3,880x1,800x1,920mm |
| Weight(kg) | 3,400 kg |
