TIME ROLLING · PHARMACEUTICAL MACHINERY
Capsule Filling & Printing Machines
Fill and print capsules with equipment matched to the required capsule size and production volume. Time Rolling supplies NJP capsule filling machines and capsule printers with configurable controls and product-contact components.
- Capsule filling
- NJP series
- Product-contact material
- SUS316L
- Capsule identification
- Two-color printing
01

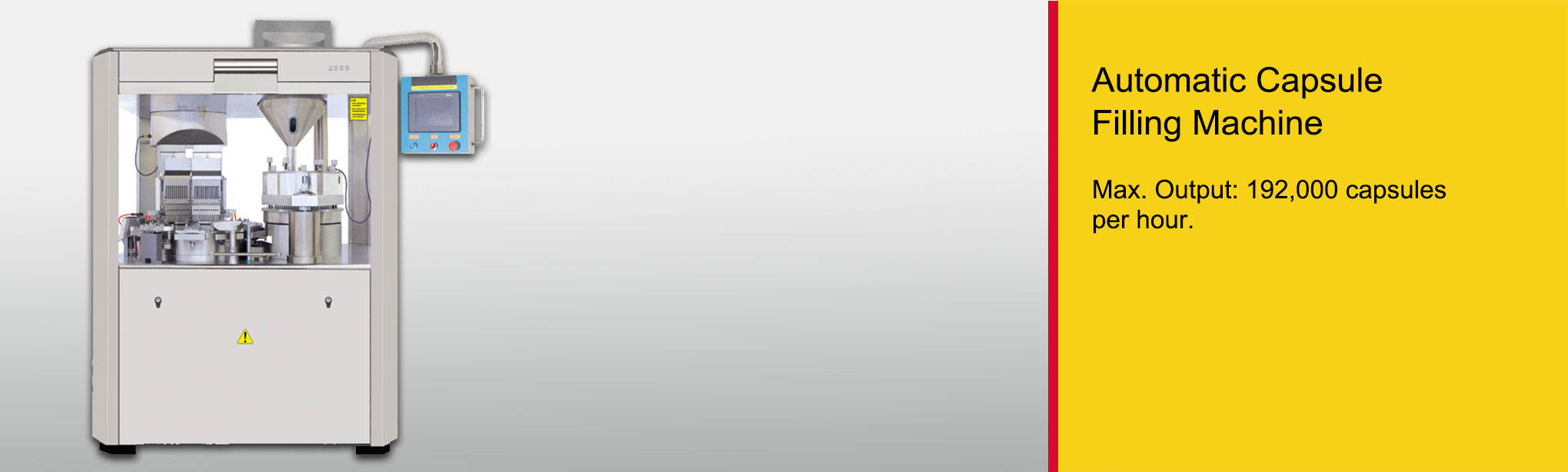

Automatic capsule filling machines
The NJP range includes NJP500, NJP800, NJP1200, NJP2200 and NJP3200 models. Machines can be configured for specific capsule production requirements, with detailed comparisons for the NJP1200, NJP2200 and NJP3200 below.

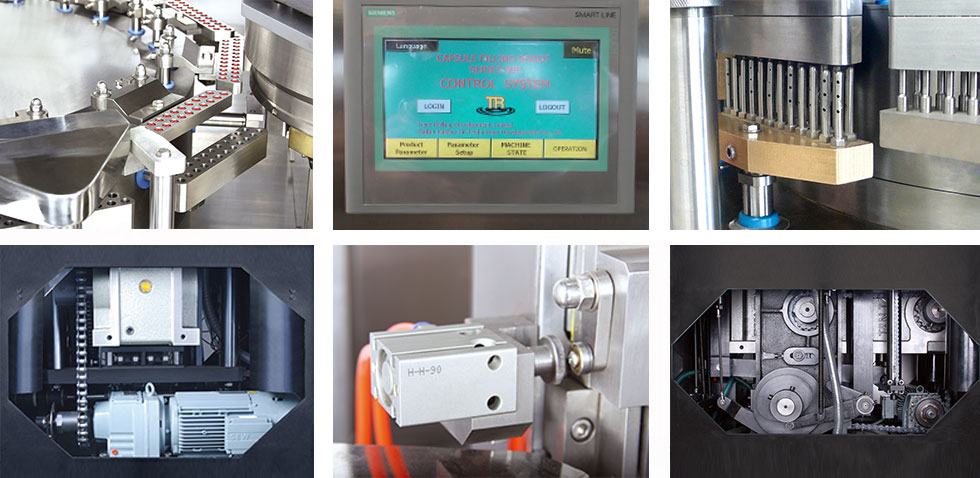

- PLC control with a touchscreen interface.
- SUS316L contact parts and a design for GMP production requirements.
- Component options include Siemens, Schneider, Omron and SKF.
- Siemens vacuum pump; design emphasizes filling precision, low noise and maintenance access.
| Model | NJP3200 | NJP2200 | NJP1200 |
|---|---|---|---|
| No. of die orifice | 23(Double) | 19(Double) | 9 |
| Max Output(capsules/h) | 192,000 | 132,000 | 72,000 |
| Vacuum | 110m3/h -0.08-0.04Mpa | 110m3/h -0.08-0.04Mpa | 27m3/h -0.02-0.08Mpa |
| Capsules number | 00-5# | 00-5# | 00-5# |
| Filling percentage | ≥ 99% | ≥ 99% | ≥ 99% |
| Filling difference | <±3 | <±3 | <±3 |
| Idle load noise db(A) | < 73 | < 73 | < 73 |
| Power | 380V 50Hz 6KW | 380V 50Hz 5KW | 380V 50Hz 3KW |
| Size L*W*H (mm) | 1420x1180x2150 | 1200x1070x2100 | 800x750x1950 |
| Weight (kg) | 2000 | 1500 | 850 |
02

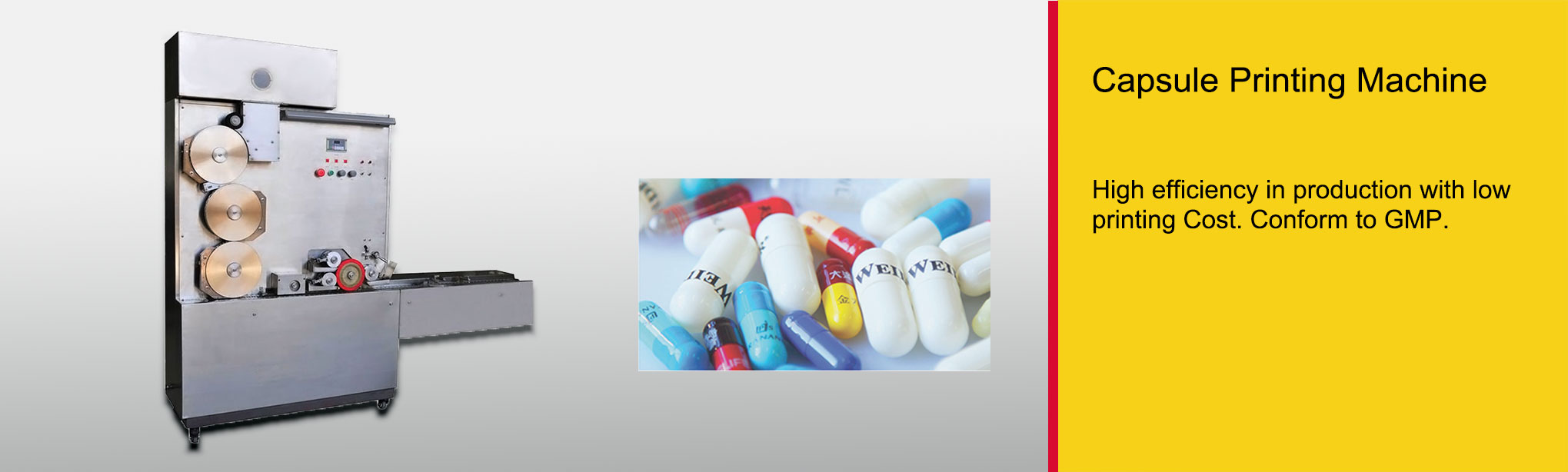

Capsule printing machine
The compact capsule printer applies text, patterns and trademarks to capsule cap bodies. It supports directional, two-color registration for different capsule specifications, with a printing angle of up to 270°.
- 316L stainless steel surfaces and contact parts.
- Variable-frequency speed control.
- Touchscreen electrical control system.
- Designed for pharmaceutical GMP production requirements.
