Rotary Tablet Press Machines
Compare rotary tablet presses for double-layer tablets, high-volume compression and smaller production runs. Time Rolling offers multiple tooling and station configurations for pharmaceutical, food and chemical applications.
- Production options
- 3 machine ranges
- Tooling by model
- EU D / B / BB / BBS
- Tablet forming
- Pre & main compression

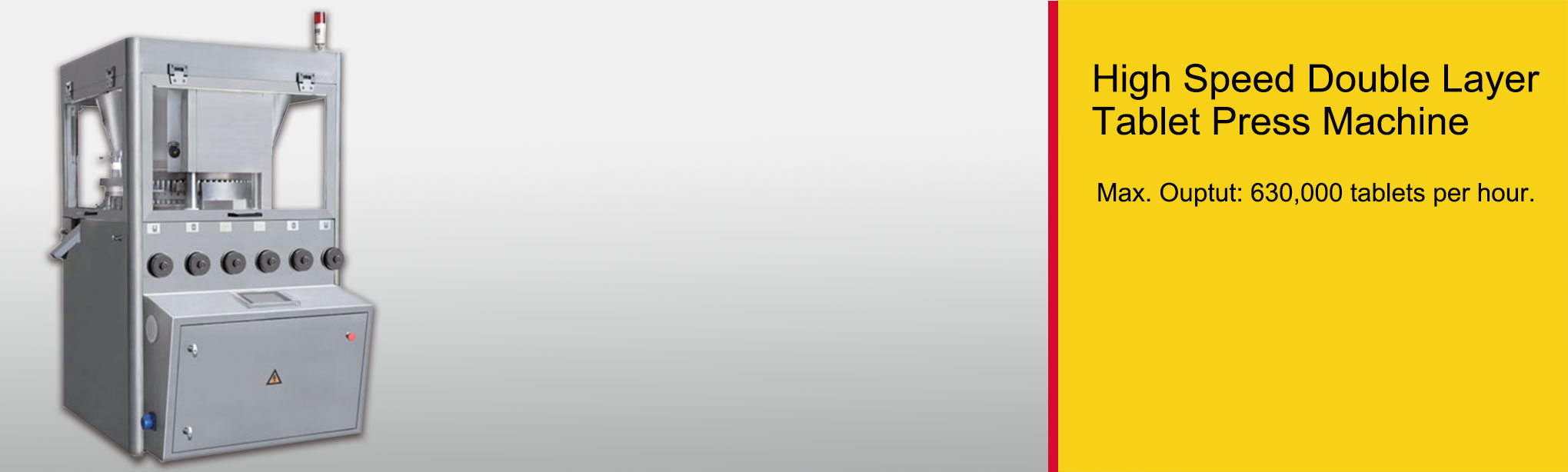

High-speed double-layer tablet press
The TRS-45, TRS-55, TRS-69 and TRS-75 series combines pre-compression and main compression with double-sided output. It supports round, annular, engraved, irregular and two-color double-layer tablets.
- Disassemblable structure for maintenance access.
- Automatic lubrication system.
- Designed to meet pharmaceutical GMP production requirements.
- Compare tablet size, tooling, pressure and output for each model below.
| Model | TRS-45 | TRS-55 | TRS-69 | TRS-75 |
|---|---|---|---|---|
| Punch & die type(EU) | D | B | BB | BB |
| Number of Press Station | 45 | 55 | 69 | 75 |
| Max Tablet Diameter (mm) | 25 | 16 | 13 | 13 |
| Max abnormal prolate axis size(mm) | 25 | 18 | 16 | 16 |
| Max Output (Tablet/h) | 390,000 | 470,000 | 580,000 | 630,000 |
| Max Filling Depth (mm) | 20 | 18 | 18 | 18 |
| Max main pressure(KN) | 100 | 100 | 100 | 100 |
| Max Pre-pressure (KN) | 20 | 20 | 20 | 20 |
| Idle load noise dB(A) | <75 | |||
| Power | 380V 50HZ 10.5-13KW | |||
| Size L x W x H (mm) | 1260×1260×1950 | |||
| Weight (kg) | 3750 | |||

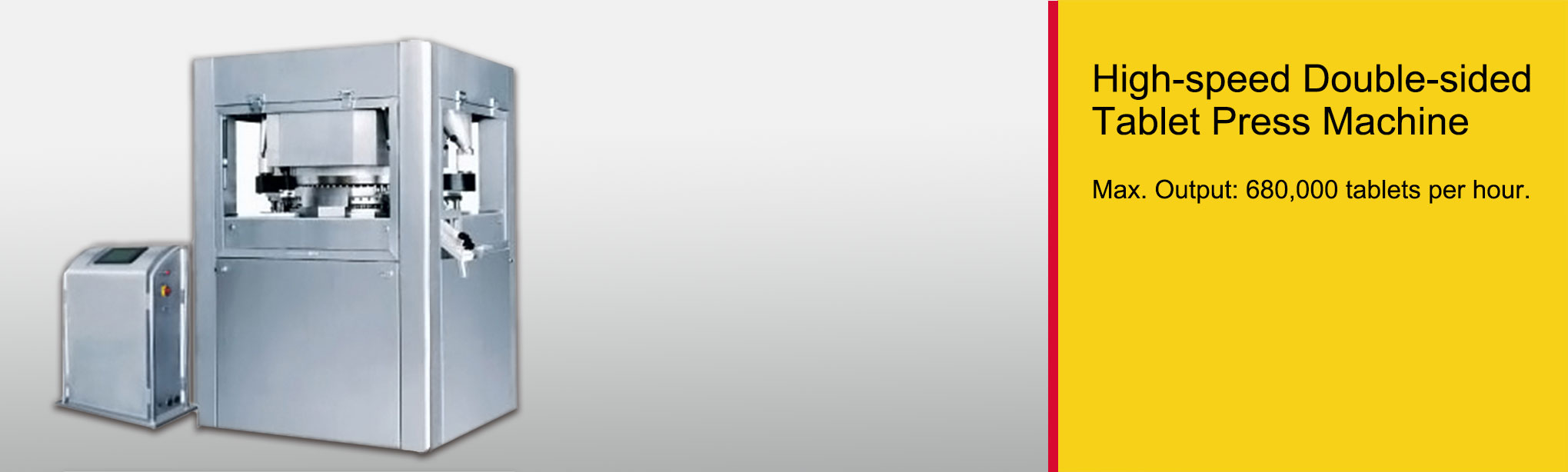

High-speed double-sided tablet press
The TRS-49, TRS-61, TRS-73 and TRS-79 range is designed for large-volume tablet production. Different tooling formats support a range of tablet diameters and shapes.
- Double-sided output for continuous tablet production.
- Suitable for round, annular, engraved, irregular and double-layer tablets.
- Designed for high-pressure compression and maintenance access.
| Model | TRS-49 | TRS-61 | TRS-73 | TRS-79 |
|---|---|---|---|---|
| Punch & die type(EU) | D | B | BB | BBS |
| Number of Press Station | 49 | 61 | 73 | 79 |
| Max Tablet Diameter (mm) | 25 | 16 | 13 | 11 |
| Max abnormal prolate axis size(mm) | 25 | 18 | 16 | 12 |
| Max Output (Tablet/h) | 430,000 | 530,000 | 630,000 | 680,000 |
| Max Filling Depth (mm) | 20 | 18 | 18 | 18 |
| Max main pressure(KN) | 100 | 100 | 100 | 100 |
| Max Pre-pressure (KN) | 100 | 100 | 100 | 100 |
| Idle load noise dB(A) | <75 | |||
| Power | 380V 50HZ 13.5-15KW | |||
| Size L x W x H (mm) | 1310×1310×1980 | |||
| Weight (kg) | 4600 | |||

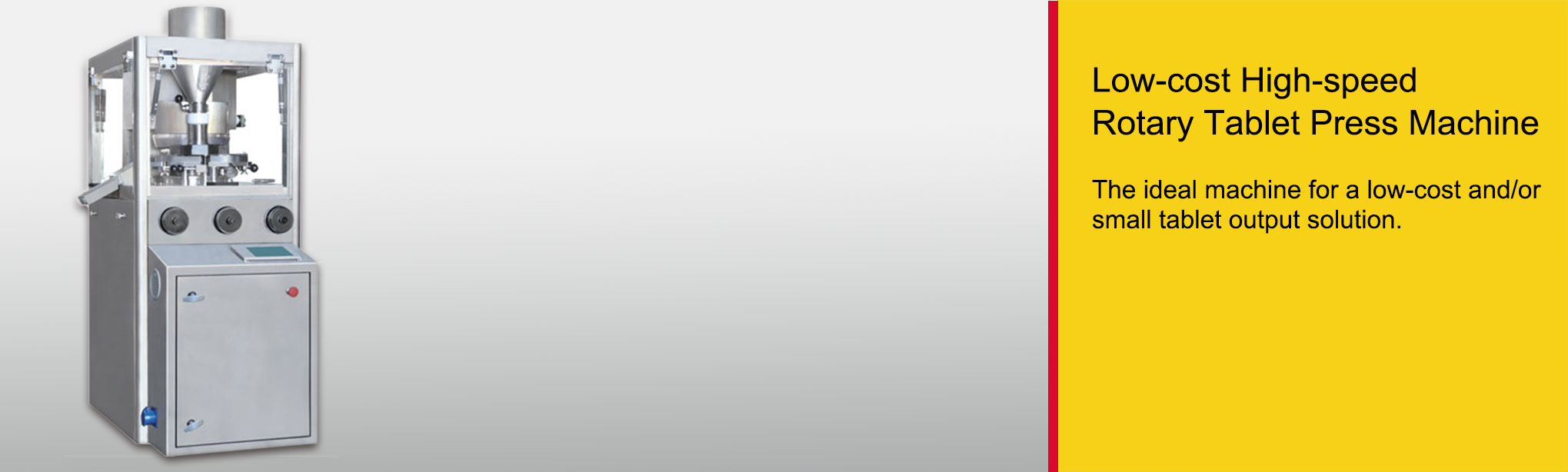

Economical rotary tablet press
The TR15, TR26, TR32 and TR40 range provides options for smaller output requirements and cost-conscious production projects. Select the station count and tooling format to suit the tablet.
- Available with D, B or BB tooling, depending on the model.
- Pre-compression and main compression stages.
- Designed for durability, maintenance access and GMP production requirements.
| Model | TR15 | TR26 | TR32 | TR40 |
|---|---|---|---|---|
| Punch & die type(EU) | D | D | B | BB |
| Number of Press Station | 15 | 26 | 32 | 40 |
| Max Tablet Diameter (mm) | 25 | 25 | 16 | 13 |
| Max abnormal prolate axis size(mm) | 25 | 25 | 18 | 16 |
| Max Output (Tablet/h) | 70,000 | 170,000 | 210,000 | 260,000 |
| Max Filling Depth (mm) | 20 | 20 | 20 | 20 |
| Max main pressure(KN) | 100 | 100 | 80 | 80 |
| Max Pre-pressure (KN) | 12 | 20 | 20 | 20 |
| Idle load noise dB(A) | ＜ 75 | |||
| Power | 380V 50HZ 9.5KW | |||
| Size L x W x H (mm) | 780×860×1930 | |||
| Weight (kg) | 1650 | |||
