Blister & Secondary Packaging Equipment
Connect blister forming and sealing with cartoning, case packing and palletizing. Time Rolling supplies equipment for Alu/Alu and Alu/PVC blister packs, followed by secondary packaging for dispatch.
- Blister formats
- Alu/Alu & Alu/PVC
- Packaging stages
- Blister to pallet
- Blister machine models
- TR-DPH 260 / 260A

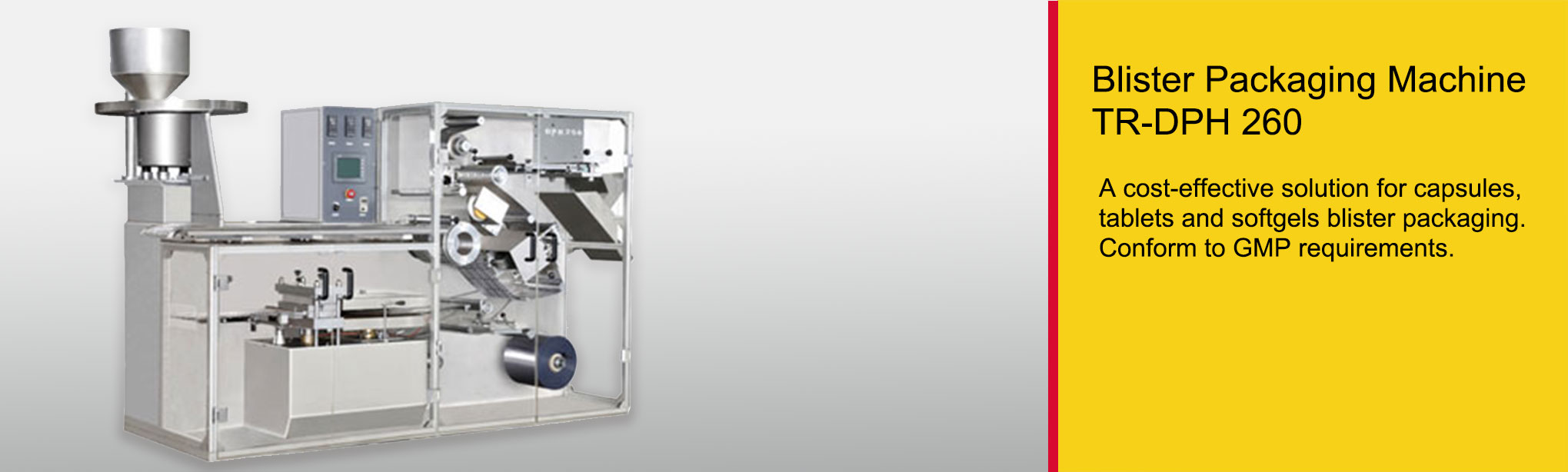

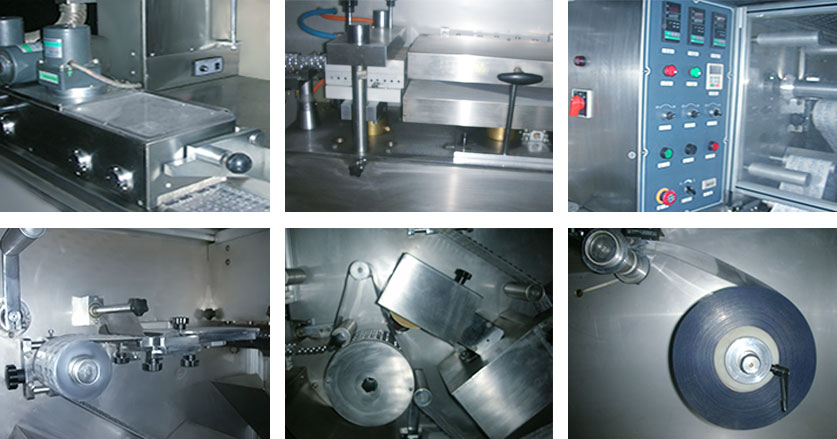

TR-DPH 260 blister packing machine
The TR-DPH 260 combines stainless steel and aluminum-alloy components with servo-controlled material transport. Format positioning and material splicing support packaging format changes.
- Forming-material reel diameter up to 600 mm.
- Servo drag system with adjustable blister length.
- Quick-lock lidding-material replacement and a waste-trimming cutter.
- Integrated material splicer and automatic format positioning.
- Internal sealing cylinder and a design for GMP production requirements.
| Model | TR-DPH 260 |
|---|---|
| Max. Speed: | Alu/Alu 40 punches/min; Alu/PVC 70 punches/min |
| Max. Output: | 280 blisters/min. (Alu/PVC Blister size 57-80mm) |
| Max. Forming Area: | 245x152 mm |
| Max. Forming Depth: | 12 mm |
| Material: | Max. Width 260 mm |
| Machine Power: | 9.6 kW |
| Machine Dimenssion: | 4 Stations: 2400x740x1,700 mm 5 Stations: 4450x740x1,700 mm |
| Machine Weight: | 4 stations: 1,800 kg; 5 stations: 1,950 kg |

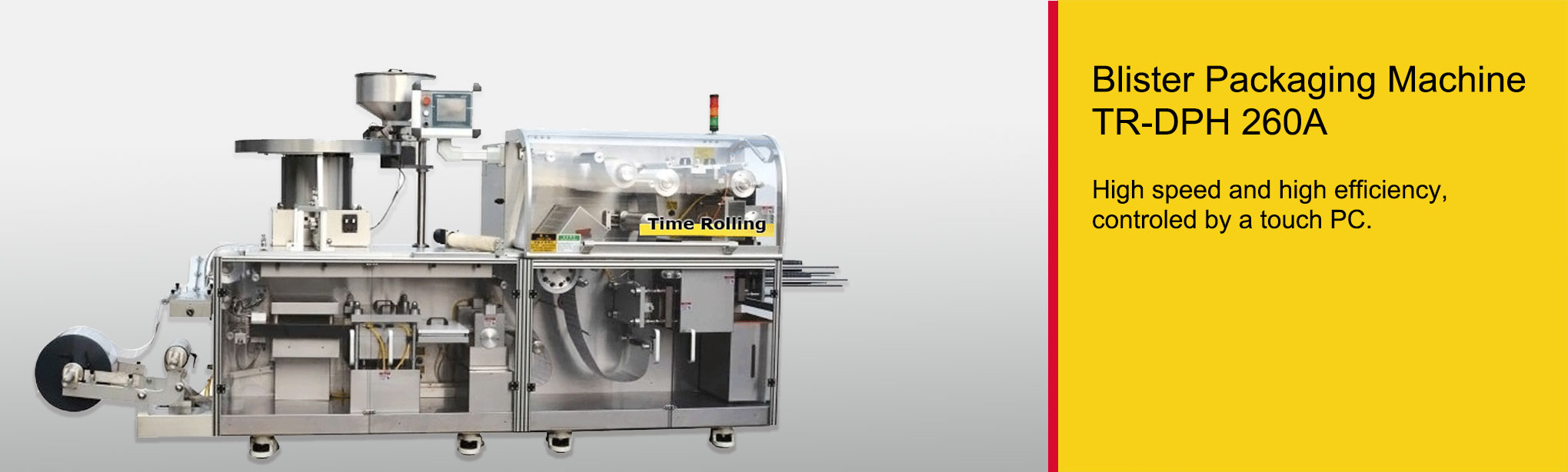

TR-DPH 260A blister packing machine
The TR-DPH 260A is a higher-output blister packaging option that can connect to downstream equipment such as high-speed cartoners.
- Forming-material reel diameter up to 600 mm and an integrated splicer.
- Automatic format positioning for format changes.
- Window-frame cutter designed to reduce trimming waste.
- Transverse cutting, blister collection and faulty-blister rejection.
- Designed for GMP production requirements.
| Model | TR-DPH 260A |
|---|---|
| Max. Speed: | Alu/Alu 100 punches/min; Alu/PVC 200punches/min |
| Max. Output: | 800 blisters/min. (Alu/PVC Blister size 57-80 mm) |
| Max. Forming Area: | 245x180 mm |
| Max. Forming Depth: | 12 mm |
| Material: | Max. Width 260 mm |
| Machine Power: | 15kW |
| Machine Dimension: | 4800x1250x2,000 mm |
| Machine Weight: | 2,500 kg |

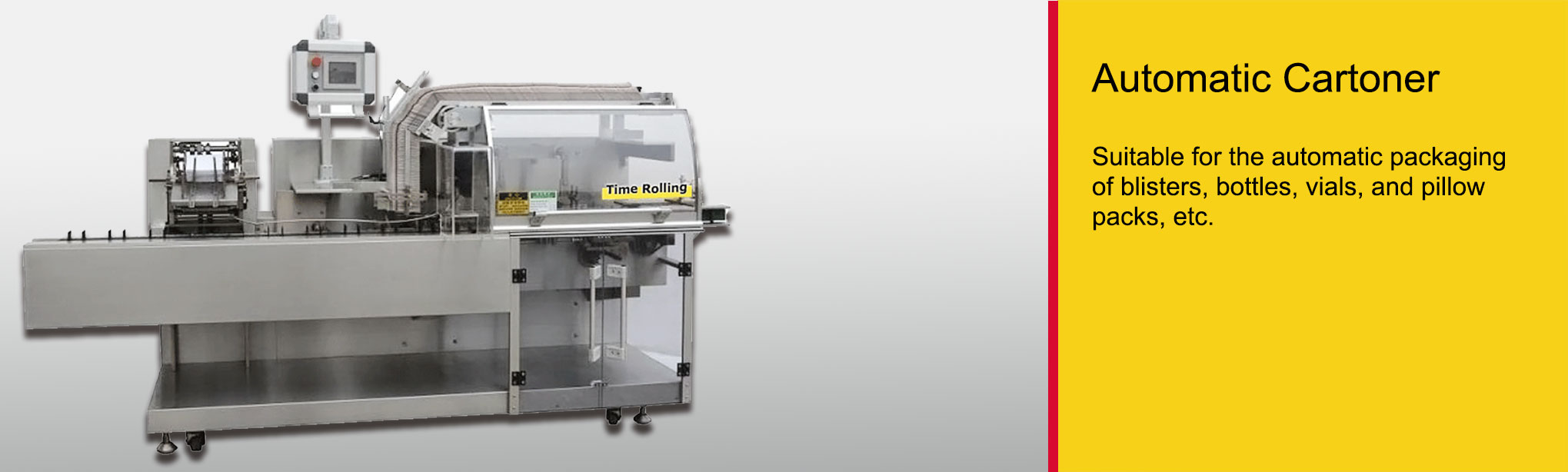

Automatic cartoner
The intermittent-motion cartoner packs blisters, bottles, vials and pillow packs. It folds leaflets, opens cartons, inserts products and leaflets, embosses the pack, closes it and discharges finished cartons.
- Tuck-in or hot-melt carton closures.
- Format changes for different carton sizes.
- Sensors and protective devices monitor operation.
- Can connect to blister packers, pillow-pack machines and overwrappers.
| Item | Specification |
|---|---|
| Max. Output | 120 cartons/min. |
| Range of Carton Size | Max.150x115x50mm Min.55x30x15mm |
| Machine Power | 1.8kw |
| Machine Dimension | 3500x1500x1800mm |
| Machine Weight | 1200kg |

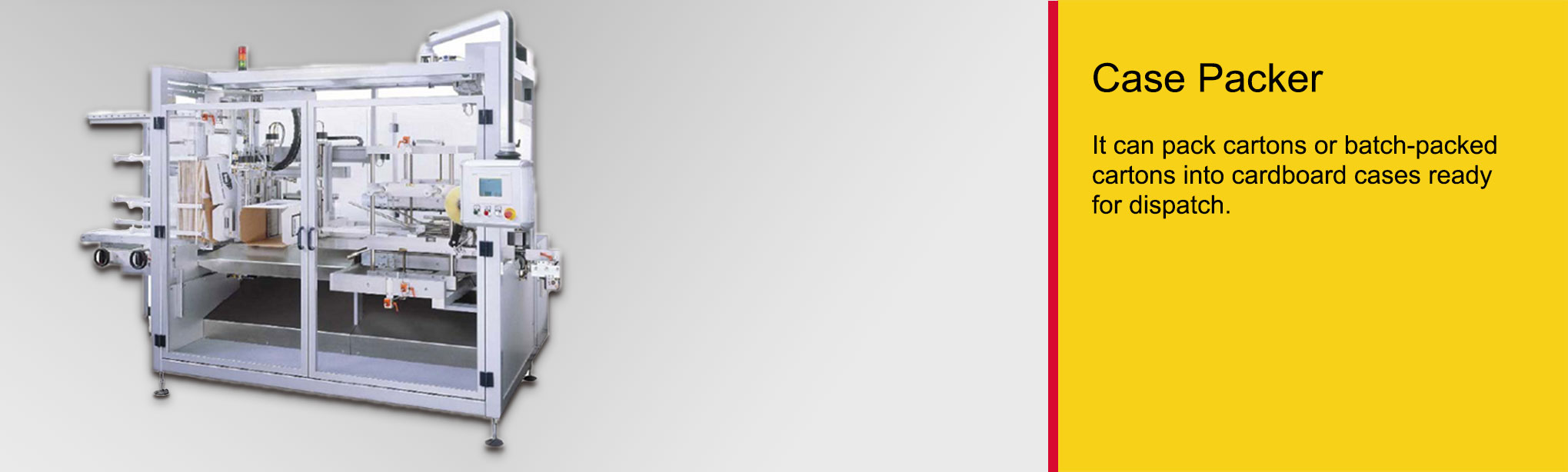

Case packer
The end-of-line case packer loads cartons or grouped cartons into shipping cases. It handles case erection, loading and closure of the top and bottom flaps.
- Adhesive tape sealing with optional hot-melt adhesive.
- Designed for coordinated case erection and filling.
- Compare case dimensions, capacity and utilities below.
| Item | Specification |
|---|---|
| Capacity | 5 Cartons/minute |
| Max. Carton Size(L*W*H) | 600x400x380 mm |
| Min. Carton Size(L*W*H) | 150x150x110mm |
| Power | 3 kW |
| Air Pressure | 0.6 Mpa |
| Machine Size(L*W*H) | 3200x1820x1900mm |
| Weight | 1,500 kg |

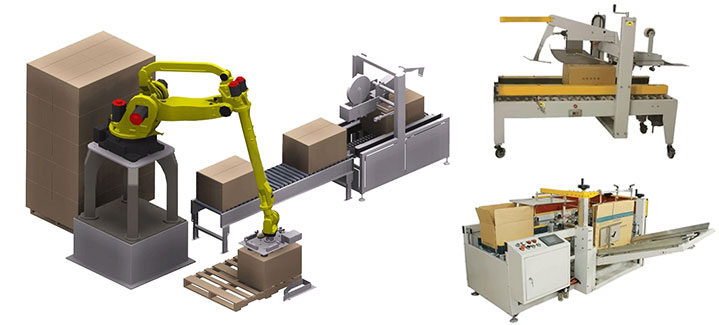

Automatic palletizing line
A compact palletizing system combines carton erection, filling, sealing and palletizing. Servo-driven motion control supports product gripping and placement from variable positions.
