Pharma Machines
Tablet Press Machine

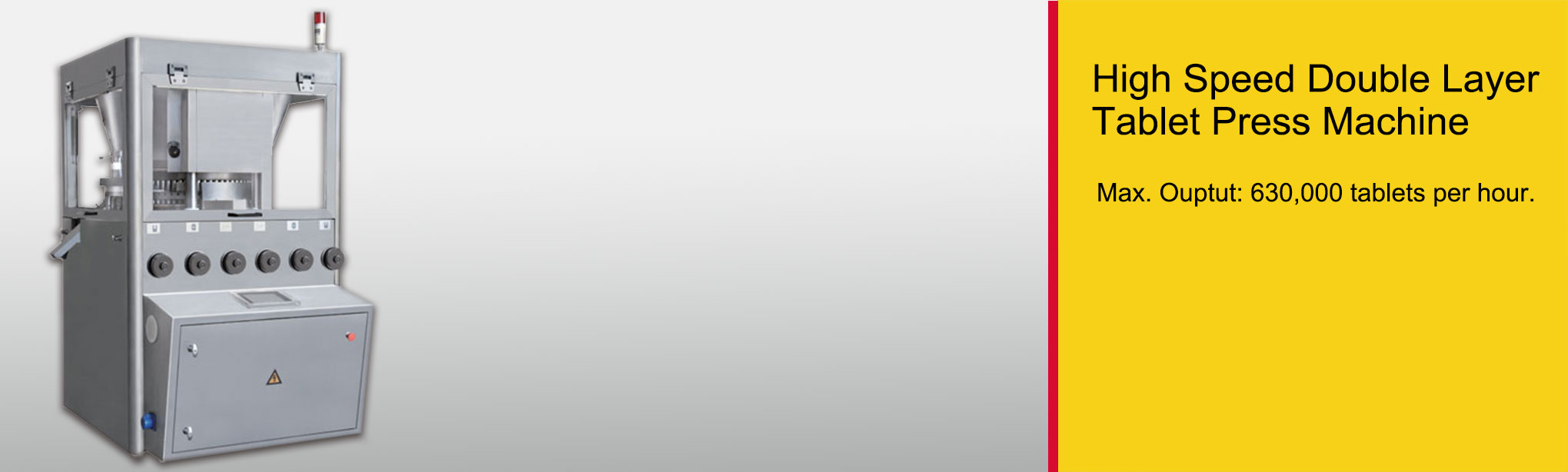

High Speed Double Layer Tablet Press Machine

Double Layer Tablet Press

It can meet the requirements of GMP standard.
Our tablet machine using a easy disassembled structure with high maintainability.
Tablets can be formed twice by pre-pressing and main pressing. Double-sided output, high efficiency.
Our tablet machines can press all kinds of tablets inlcuding annular tablets, round tablets, engraved tablets, irregular tablets and two layers tablets with different colors. They are widely used by worldwide pharmaceutical, food and chemical factories.
It equiped with an automaticly lubrication system.

Model

TRS-45

TRS-55

TRS-69

TRS-75

Punch & die type(EU)

D

B

BB

BB

Number of Press Station

45

55

69

75

Max Tablet Diameter (mm)

25

16

13

13

Max abnormal prolate axis size(mm)

25

18

16

16

Max Output (Tablet/h)

390,000

470,000

580,000

630,000

Max Filling Depth (mm)

20

18

18

18

Max main pressure(KN)

100

100

100

100

Max Pre-pressure (KN)

20

20

20

20

Idle load noise dB(A)

<75

Power

380V 50HZ 10.5-13KW

Size L x W x H (mm)

1260×1260×1950

Weight (kg)

3750

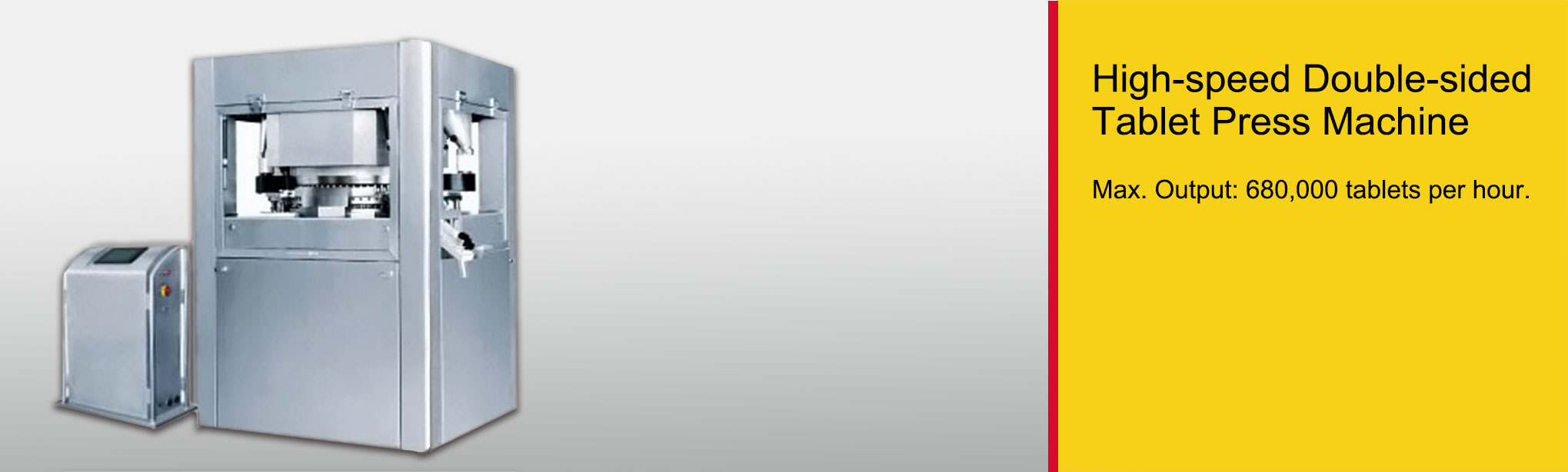

High-Speed Double-Sided Tablet Press Machine

Double-sided Tablet Press Machine

High pressure, large diameter of tablets, high yield, accurate with low maintenance.
Experienced & advanced design.
An ideal equipments for mass production of tablets.
It can meet the requirements of GMP standard
Our tablet machines can press all kinds of tablets inlcuding annular tablets, round tablets, engraved tablets, irregular tablets and two layers tablets with different colors. They are widely used by worldwide pharmaceutical, food and chemical factories.

Model

TRS-49

TRS-61

TRS-73

TRS-79

Punch & die type(EU)

D

B

BB

BBS

Number of Press Station

49

61

73

79

Max Tablet Diameter (mm)

25

16

13

11

Max abnormal prolate axis size(mm)

25

18

16

12

Max Output (Tablet/h)

430,000

530,000

630,000

680,000

Max Filling Depth (mm)

20

18

18

18

Max main pressure(KN)

100

100

100

100

Max Pre-pressure (KN)

100

100

100

100

Idle load noise dB(A)

<75

Power

380V 50HZ 13.5-15KW

Size L x W x H (mm)

1310×1310×1980

Weight (kg)

4600

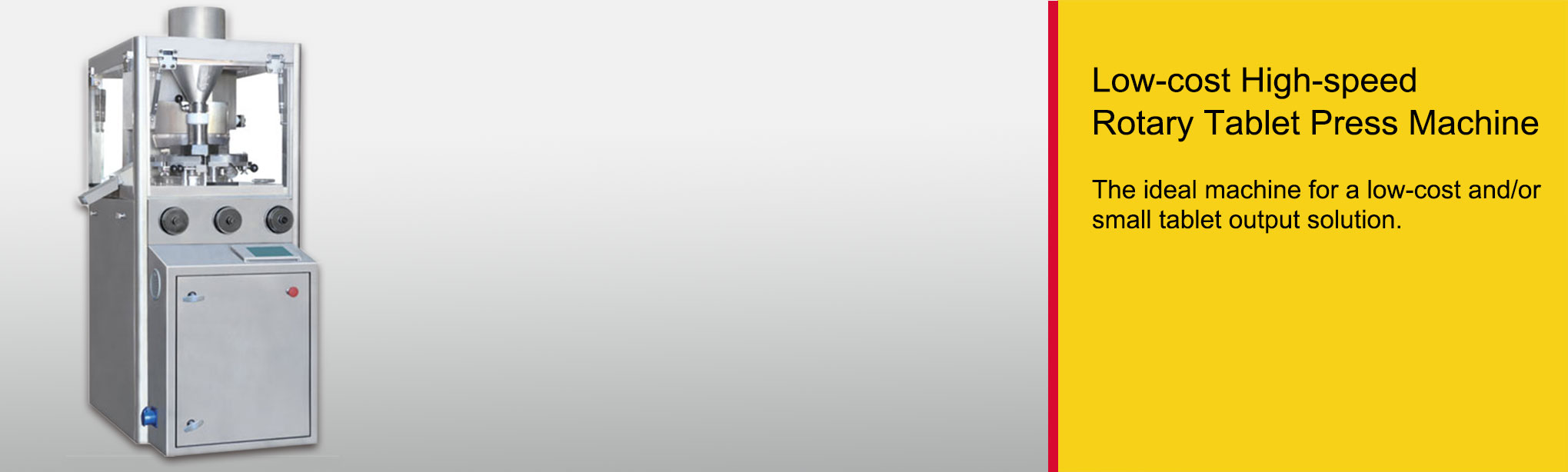

Low-cost High-Speed Rotary Tablet Press Machine

High Speed Rotary Tablet Press Machine

The ideal machine for a economic/low-cost and/or small tablet output solution.
It is durable with low maintenance.
It can meet the requirements of GMP standard

Model

TR15

TR26

TR32

TR40

Punch & die type(EU)

D

D

B

BB

Number of Press Station

15

26

32

40

Max Tablet Diameter (mm)

25

25

16

13

Max abnormal prolate axis size(mm)

25

25

18

16

Max Output (Tablet/h)

70,000

170,000

210,000

260,000

Max Filling Depth (mm)

20

20

20

20

Max main pressure(KN)

100

100

80

80

Max Pre-pressure (KN)

12

20

20

20

Idle load noise dB(A)

 75

Power

380V 50HZ 9.5KW

Size L x W x H (mm)

780×860×1930

Weight (kg)

1650
